Fiber Patch Cord
-
3m LC UPC to LC UPC Simplex OS2 Single Mode 7.0mm LSZH FTTA Outdoor Fiber Patch Cable
Specification

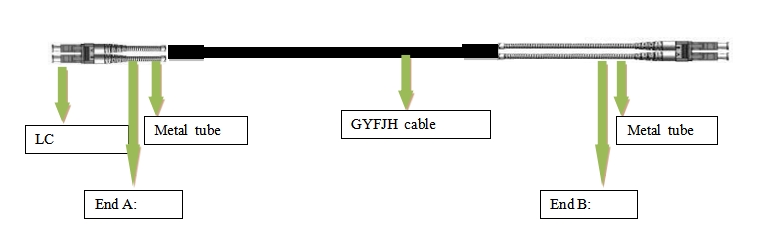

- GYFJH Cable

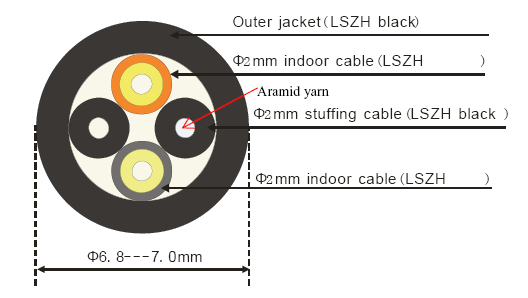

1.1 Structure:
1.2 Application
Mainly used in wireless base station horizontal and vertical cabling
1.3 Features
1, Good mechanical and environmental characteristics;
2, Flame retardant characteristics meet the requirements of relevant standards;
3, The mechanical characteristics of jacket meet the requirements of relevant standards;
4, Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
5, Meet various requirements of market and clients
1.4 Cable Parameters
Fiber Count Cable Dimension mm
Cable Weight kg/km
Tensile N
Crush N/100mm
Min. Bend Radius mm
Range of Temperature Long Term Short Term Long Term Short Term Dynamic Static 2 7.0 42.3 200 400 1100 2200 20D 10D -30-+70 Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter;
3. D is outer diameter of the round cable;
- one single mode fiber
Item
Unit
Specification
Attenuation
dB/km
1310nm≤0.4
1550nm≤0.3
Dispersion
Ps/nm.km
1285~1330nm≤3.5
1550nm≤18.0
Zero dispersion wavelength
Nm
1300~1324
Zero dispersion slope
Ps/nm.km
≤0.095
Fiber cutoff wavelength
Nm
≤1260
Mode field diameter
Um
9.2±0.5
Mode field concentricity
Um
<=0.8
Cladding diameter
um
125±1.0
Cladding non-circularity
%
≤1.0
Coating/cladding concentricity error
Um
≤12.5
Coating diameter
um
245±10
bending, dependence induced attenuation
1550nm, 1turns,32mm diameter 100rums,60mm diameter
≤0.5 db
Proof test
kpsi
≥100
- Connector Specification
ITEM
PARAMETER
Connector type
DLC/UPC . FC/UPC Insertion Loss
<=0.3db
Return Loss
>=50db
Fiber mode
Single mode 9/125
Operating wavelength
1310nm, 1550nm
Test wavelength
1310nm, 1550nm
Repeatability
<=0.1
Interchangeability
<=0.2dB
Durability
<=0.2dB
Fiber Length
1m, 2m….. any length optional.
Length and tolerance
10cm
Operating Temperature
-40C ~ +85C
Storage Temperature
-40C ~ +85C
-
LC/UPC-LC/UPC Duplex OS2 Single Mode PVC (OFNR) 2.0mm Fiber patchcord
LC/UPC-LC/UPC Duplex Fiber optic patch cord
Optical Fiber Patch Cord (Jumper) is a length of optical fiber with two ends adding connectors to connect beam path. Pigtail is a length of fiber permanently attached connector only at one end. B&D patch cords assembled with various types of connectors (such as FC, SC, ST, LC, MU, MTRJ, etc.) There are three kinds of polished fiber end-face: PC, UPC and APC. we employ advanced technique and equipment to manufacture so as to ensure the high quality of mass production.
-
2.0mm SX MM Fiber Optic Patch cord
FIBER OPTIC PATCH CORD-MM(OM2, OM3, OM4)
A patch cord is a fiber optic cable used to attach one device to another for signal routing. Normally, there are 4 types connector: FC/SC/LC/ST.. 2types ferrule: PC, UPC.
FC stands for Fixed Connection. It is fixed by way of threaded barrel housing. FC connectors are generally constructed with a metal housing and are nickel-plated.
-
3.0mm G652D Fiber Optic Patch cord
A patch cord is a fiber optic cable used to attach one device to another for signal routing. Normally, there are 4 types connector: FC/SC/LC/ST.. 3types ferrule: PC, UPC, APC…
FC stands for Fixed Connection. It is fixed by way of threaded barrel housing. FC connectors are generally constructed with a metal housing and are nickel-plated.
-
FTTA jumper-PDLC-DLC Fiber Outdoor Patch cord
Good mechanical and environmental characteristics;
Flame retardant characteristics meet the requirements of relevant standards;
The mechanical characteristics of jacket meet the requirements of relevant standards;
Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
Meet various requirements of market and clients。
