19 inch Rack Mount ODF
19 inch Rack Mount ODF
19 inch Rack Mount ODF
19 inch Rack Mount ODF
19 inch Rack Mount ODF

19 inch Rack Mount ODF

Payment Type: L/C,T/T,D/P,Paypal,Western Union
Min. Order: 100 Piece/Pieces
Delivery Time: 5 Days

Contact Now Add to Basket

Basic Info

    Model No.: HT-ODF

    Type: Optical Fiber Distribution Box

    Wiring Devices: ODF

    Certification: ISO

    Condition: New

    Size: 1U/2U/3U

    Color: Grey/Black

    Sample: Accessible

    Connector: FC,SC,ST,LC

    Install Type: Rack Mount

Additional Info

    Packaging: 5pcs/cartons

    Productivity: 20000

    Brand: HTLL

    Transportation: Ocean,Land,Air

    Place of Origin: China

    Supply Ability: 1000

    Certificate: ISO9001:2008

    Port: ShenZhen,ShangHai,GuangZhou

Product Description


Optical Distribution Frame (ODF) is integrated components in any fiber management system to handle termination and cross-connection of cables. Pre-terminated ODF with cables are pre-installed with connectors and cable for quick and easy installation. Units with pre-terminated cables offer advantages such as faster installation, resulting in shorter time to revenue as well as guaranteed quality and performance. We offer optical distribution frame in different size, such as 1U 12 ports, 1U 24 ports, 2U 36ports, 3U 48 ports, 4U 72 ports. Several cable options are available.

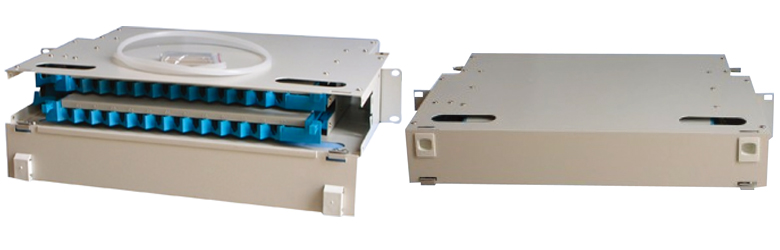

1.Its main function is to terminate the fiber optic cable andprovide connection access to the cables individual fibers
2.Fiber distribution units are termination units, which aredesigned to provide a secure, organized chamber for housing connectors and splice units
3.Rack mount panels is usually 19 or 23-inch universal width
4.Height of patch panel can be 1, 2, 3, 4, 6u and more
5.Opening of the optical Fiber Patch Panels can be sliding cable or fixed or revolving:
6.Pigtails melted and splicing with fiber cables of (maximum) 12cores in cabinet from upper outlet
7.Connecting optical fiber and equipment of central office, patch cords connecting with pigtails through FC, SC ,LC adapter

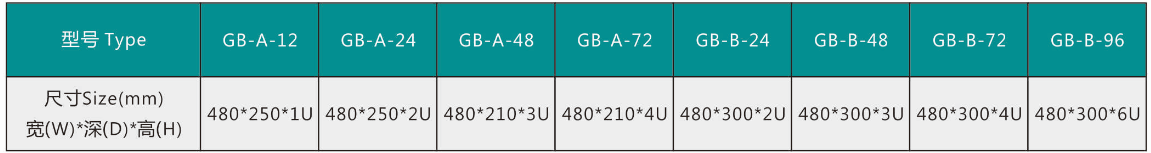

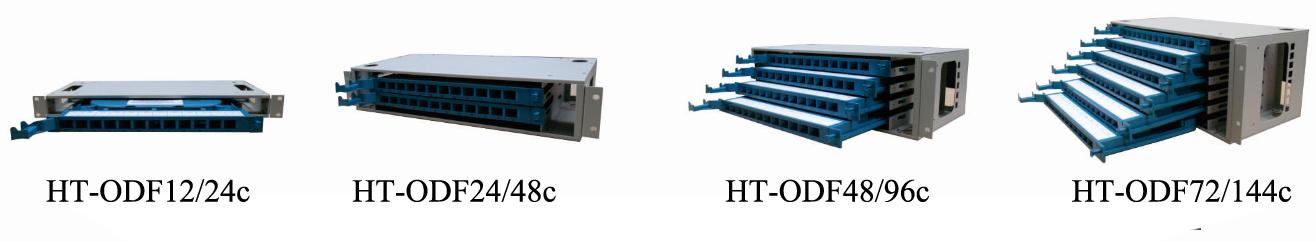

The product type:(12c.24c.48c.72c.96c.144c,288c)ODF unit.
◆specifications:19〞standard install
◆Material:Adopt the thickness of 1.5 mm cold plate is made, epoxy electrostatic plastic spraying, good appearance, easy to use
◆Use Condition:
*Working Temperature:-10°C~+40°C
*store Temperature:-25°C~+55°C
*Related Humidity:≤85%(+30°C)
*The atmospheric pressure:70Kpa~106Kpa
◆photoelectric properties

*working wavelength :850nm.1310nm.1550nm
*insert loss:≤0.5dB
*return Loss:PC≥40dB.UPC≥50dB.APC≥60dB
*dielectric withstanding voltage:≥3KV(DC)/1min;
*Insulation resistance:≥1000MΩ/500V(DC)
*Life Time:≥1000times
*Shelter plate of fiber bending radius:≥40mm]
◆mechanical capacity
*Combustion performance of plastic parts can demand of GB51697-85
*Optical fiber through the metal plate hole fashion have a case, the fiber core, tail fiber radius of curvature is greater than 37.5 mm
*Cable into the chassis, the radius of curvature is greater than 15 times of cable diameter
*Adopt the thickness of 1.5 mm cold plate is made, epoxy electrostatic plastic spraying, good appearance, easy to use
*With cable fixed and protection function
*With functions of fiber optic cable terminating
*Optical fiber core and tail fiber protection function
◆Range of application
*To the community, suitable for optical fiber optical fiber to the building, the remote module and wireless base stations of small and medium-sized wiring system

Fiber Optic Distribution BoxODFFiber Optic FrameOdfOdfOdf

Looking for ideal Fiber Optical Patch Panel Odf Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the 19 Inch Rack Mount Odf are quality guaranteed. We are China Origin Factory of Fiber Optical ODF Unit. If you have any question, please feel free to contact us.

Product Categories : Fiber Distribution Cabinet > Fiber Optic Distribution Unit
