ChengDu HTLL Electronical Equipment Co.,LTD

8 Ports Outdoor Plc Splitter Box
8 Ports Outdoor Plc Splitter Box
8 Ports Outdoor Plc Splitter Box
8 Ports Outdoor Plc Splitter Box
8 Ports Outdoor Plc Splitter Box

8 Ports Outdoor Plc Splitter Box

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,FCA,CPT,CIP
Min. Order: 100 Bag/Bags
Delivery Time: 7 Days

Contact Now Add to Basket

Basic Info

    Model No.: ht2154

    Type: Optical Fiber Distribution Box

    Certification: GS, RoHS, ISO, CE

    Color: White

    Material: PC/ABS

    Ports: 8/16

    Application: FTTH

    Operating Temperature: -40 ℃ ~ +70 ℃

Additional Info

    Packaging: paper box

    Productivity: 10000

    Brand: HTLL

    Transportation: Ocean,Land,Air

    Place of Origin: SICHUAN

    Supply Ability: 100000

    Certificate: iso

    HS Code: 8517622990

    Port: Chengdu,Shenzhen,Shanghai

Product Description

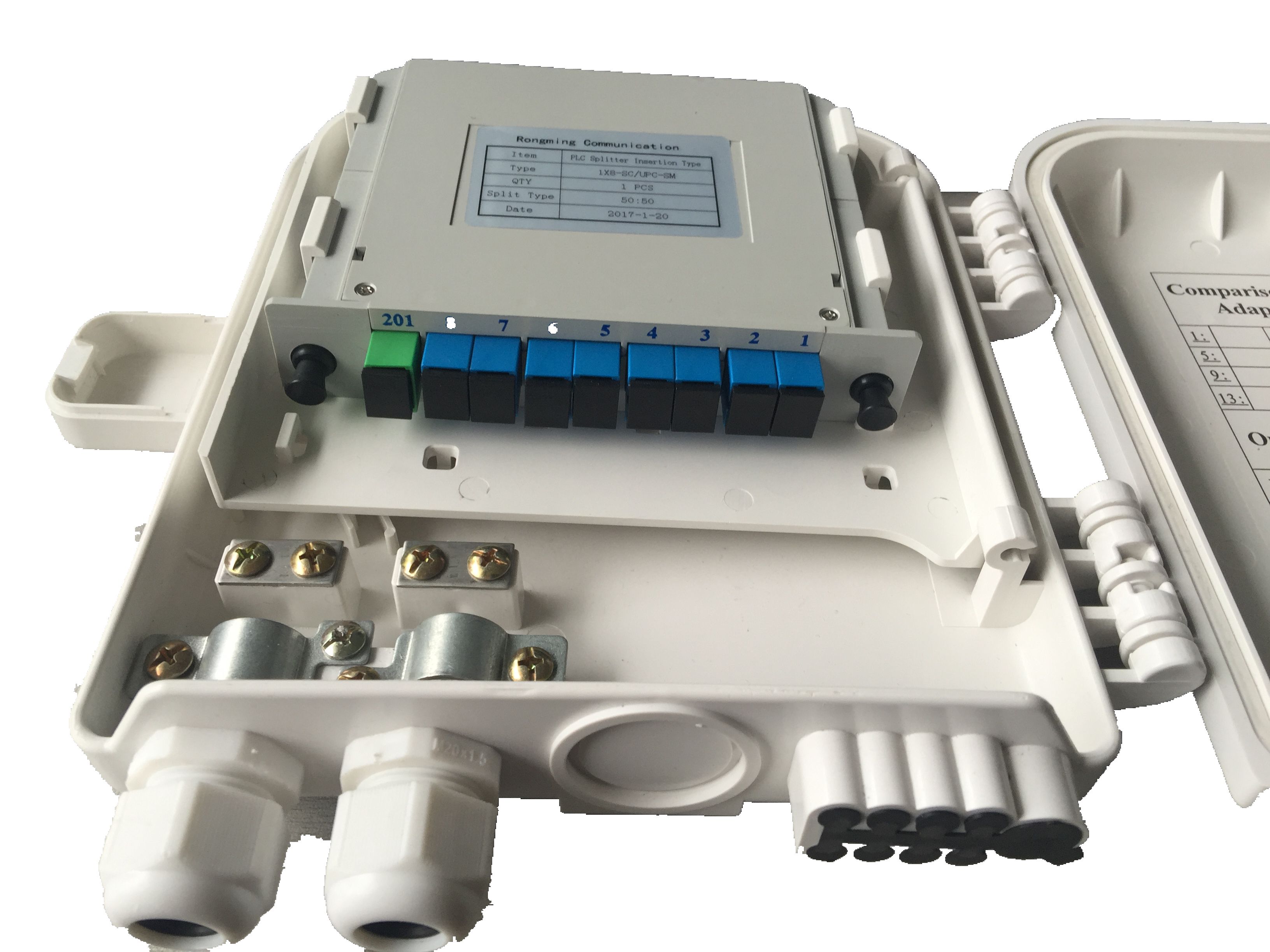

Fiber Optic Splitter Box performance in line with industry standards YD / T2150-2010 requirements. Mainly used in FTTX access system terminal links. Box with high-strength PC alloy plastic injection molding, with good sealing and anti-aging properties, waterproof,can be installed in outdoor wall, hanging rod installation or indoor wall installation.


Applicable environmental requirements:

Waterproof Grading: IP55
Temperature: -40℃~+60℃
Humidity: ≤95%(+40℃)
Atmospheric pressure: 70KPa~108 KPa
Box size: 205(H)×180(W)×50(D)mm



Function:

1.The internal use of single-layer structure design, divided into optical distribution area, the introduction of outdoor cable, fixed welding and butterfly-shaped cable coiled storage area. Fiber optic lines clear, do not interfere with each other, to facilitate the construction operation and post-maintenance.

2.There are two cable entry holes along the bottom of the box. Can be introduced two outdoor cable and eight butterfly cable. To meet the direct or divergence of outdoor fiber optic cable connection and butterfly-shaped cable connection.

3.Fused discs can be configured with 8-core or 12-core capacity to meet the expansion capacity of the cabinet.

4.Flange installation to meet the 8-core.

5.butterfly-shaped fiber optic cable fixed unit with card slot structure, can be ordered and butterfly-shaped fiber optic cable laying.

6.box body can be stored about 1 meter butterfly cable, through the wire ring in the box orderly deployment, and to ensure that the bending radius ≥ 30mm. splitter box8 cores fiber splitter box




Looking for ideal PLC Splitter Box Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Fiber Distribution Boxs are quality guaranteed. We are China Origin Factory of Optical Splitter Box. If you have any question, please feel free to contact us.

Product Categories : ABS Fiber Distribution Box > Outdoor Fiber Distrbution Box
