Fiber Splice tray – HTLL Detail:

Feature

ABS Material 12/24/48 Cores FTTH Optical Fiber Splice Tray / FTTH Optical fiber Protection box/Fiber optics Cassette Splice tray/Optical Fiber Cable Splice/6 Fiber Splice Tray

ABS Material FTTH Optical Fiber Splice Tray is a device for connecting optical cables, designed to provide a location to store and to protect the fiber cables and the splices. Operation method: introduce the optical cable into the fiber melting disc, weld it, and finally package it. It is used for welding and branching of optical fiber. The cover can be turned over and the disk can be stacked to expand the capacity. It is very convenient to install and use. optical wiring products, plastic accessories. The splicing panel is assembled in the optical cable junction box. Part of the optical fiber is fused with the tail fiber for connection scheduling, and the other part is directly connected with other optical cables (direct melting).

● Management and storage pigtail

● Fiber optic fusion protection

● Use for single-mode or multimode fiber

● Durable injection-molded plastic trays and covers fiber optic tray fiber optic tray

● Center holes for mounting of the tray

● 12-fiber and 24-fiber splice trays installable in Wall Mount enclosures & splice closures

● Several capacity: 6,12,24,48F fiber fiber optic tray fiber optic tray

● Several adapters can be installed: FC, SC, ST, duplex LC fiber optic tray fiber optic tray

Application

● Fiber optic distribution frame

● FTTH terminal box

● Fiber optic splice closures

● Optical cabinet

Parameters

Material	ABS plastic
Type	6 12 24 cores Optical Fiber Splice Tray
Size	160x100x13.5
Working temperature	-5 °C ~ 40 °C
Relative humidity	≤ 85% (30 °C pm)
Atmospheric pressure	70 ~ 106Kpa
Fire retardant: flame retardant plastic (ABS)	flame retardant meet industry requirements, adding anti-aging agent

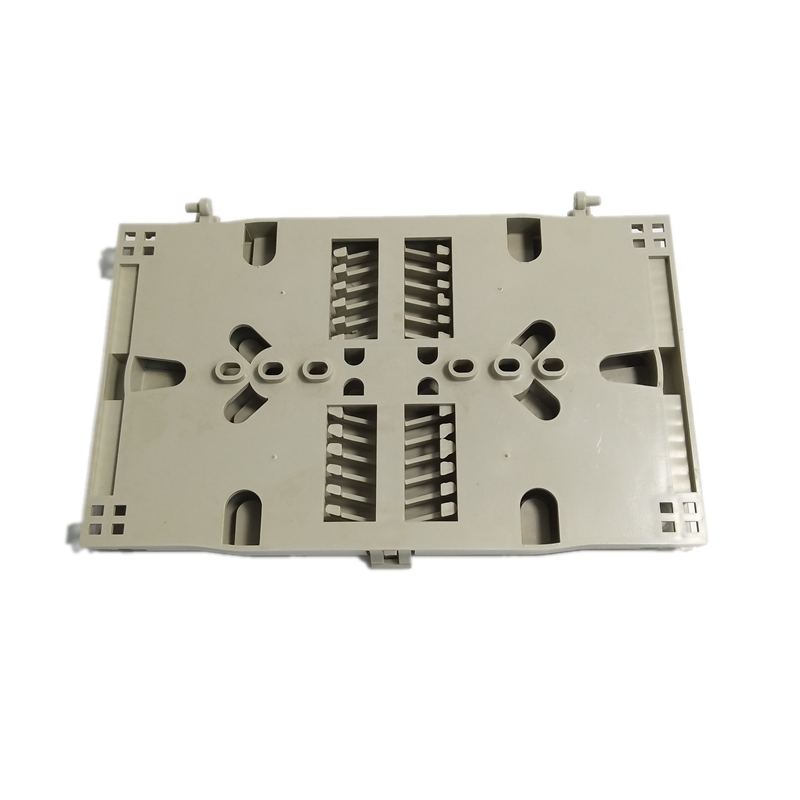

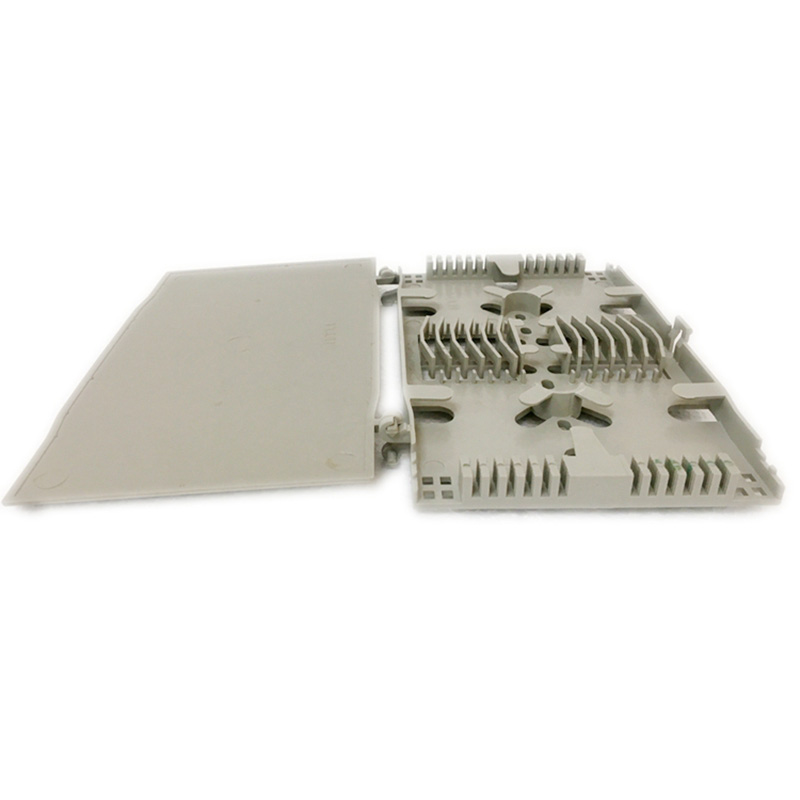

Product detail pictures:
