FPV Drone Optical Fiber
FPV Drone Optical Fiber Release Kit Parameter：
|
ITEM |
DF-27/5/10/15/20/30KM |
Fiber Length |

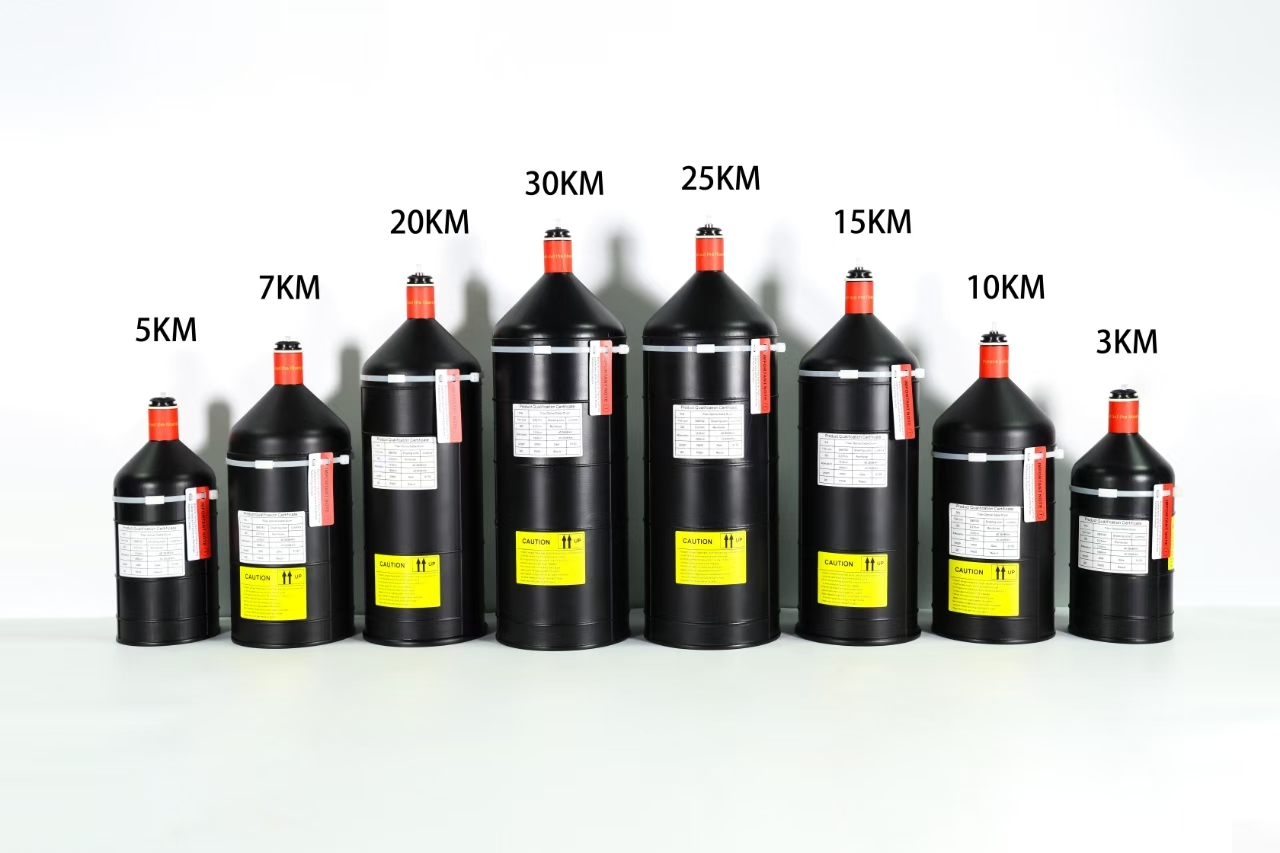

5/10/15/20/30KM |
|||
|
Product Name |
FPV Drone Optical Fiber Release Kit |
Fiber Type |
G657A2 |
|||
|
Jacket Material |
/ |
Weight/KM |
80g |
|||
|
Fiber OD |
0.27mm ±0.1 |
Operating Temperature |
（-40~+85） ℃ |
|||
|
Fiber Color |
Natural (transparent) |
|||||
|
Connector Type |
Optional SC/LC/FC/ST |
|||||
|
Optical Fiber Parameter |
||||||
|
1310nm |
1550nm |
|||||
|
Insertion Loss |
≤0.35 |
≤0.25 |
||||
|
Unit |
dB/km |
|||||
|
WT |
0.329 |
0.185 |
||||
|
Canister Spec |
||||||
|
Materials |
Dimension |
Empty Weight |
||||
|
ABS |
10*24cm |
110G |
||||
|
ABS |
12*32 cm |
160G |
||||
|
ABS |
14*36cm |
200G |
||||
Fiber with drum Only , No sky & Ground Module and Video data Adapter ( No Accessories)

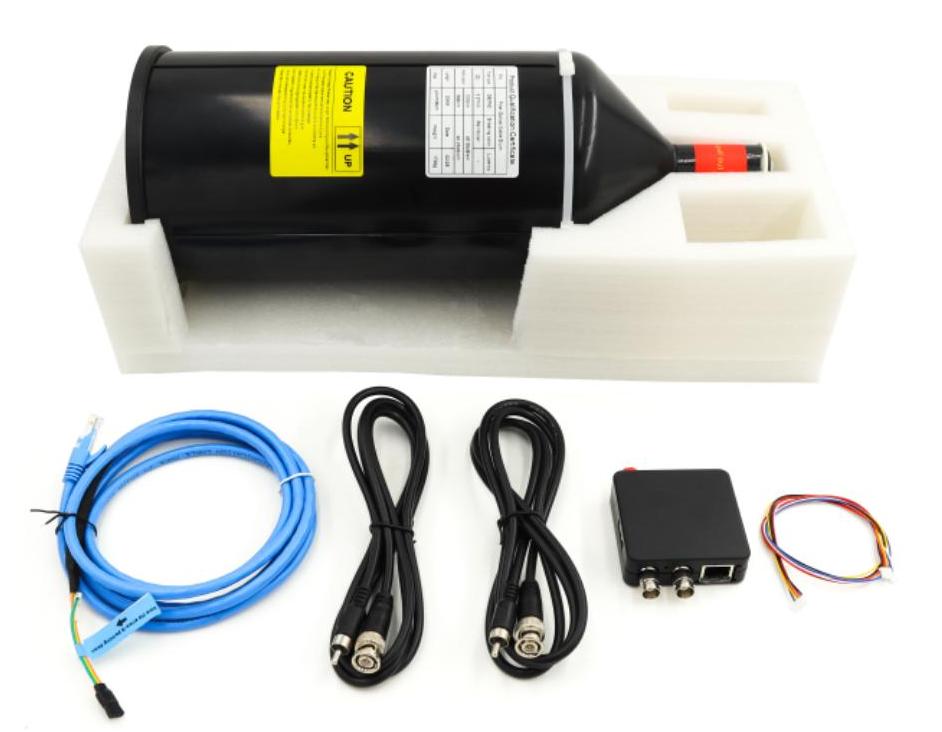

Fiber with Sky & Ground Module Accessories
