Wholesale China 1×2 Fiber Splitter Factories Manufacturers – ABS PLC Fiber Optical Splitter Boxes – HTLL Detail:
Features
● Fiber splitters with Excellent Mechanical,Small Size. It can provide easier and more flexible wiring. Plc splitter can be directly installed in various existing junction boxes without the need. Leave a lot of installation space.
● 1*16 fiber Splitter High Reliability.
● Fiber optic splitter Low insertion Loss and low Polarization Dependent loss.
● ABS PLC Splitter Boxes with High channel counts.
● PLC Optic Splitter with Excellent Environmental Stability and Widely Used, Uniform light distribution and good stability.
The loss is insensitive to the wavelength of the transmitted light, the insertion loss is low, and the light splitting is uniform. There are many shunt channels for a single device, which can reach more than 32 channels.
Applications
● FTTX Systems Deployments(GPON/BPON/EPON)
● FTTH Systems
● Passive optical networks PON
● Cable television CATV Links
● Optical Signal Distribution
● Local area networks (LAN)
● Test equipment
● Adapter compatible: FC, SC, LC, ST, MPO
Performance indicators
| Specifications | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 | 1*128 |
| Fiber type | G.657.A | ||||||
| Working wavelength | 1260nm~1650nm | ||||||
| Maximum insertion loss (dB) | <3.6 | <6.9 | <10.3 | <13.5 | <16.6 | <20.1 | <23.4 |
| Port insertion loss uniformity (dB) | <0.5 | <0.5 | <0.5 | <0.8 | <1.0 | <1.5 | <1.5 |
| Interwavelength Loss Uniformity (dB) |
<0.5 | <0.5 | <0.5 | <0.8 | <0.85 | <0.85 | <1.0 |
| Echo Loss (dB) (Output cut-off) | >50 | >50 | >50 | >50 | >50 | >50 | >50 |
| Directionality (dB) | >55 | >55 | >55 | >55 | >55 | >55 | >55 |
| Specifications | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 | 2*128 |
| Fiber type | G.657.A | ||||||
| Working wavelength | 1260nm~1650nm | ||||||
| Maximum insertion loss (dB) | <4.1 | <7.4 | <10.5 | <13.8 | <17.0 | <20.4 | <23.7 |
| Port insertion loss uniformity (dB) | <0.5 | <0.8 | <0.8 | <1.0 | <1.5 | <2.0 | <2.0 |
| Interwavelength Loss Uniformity (dB) | <0.8 | <0.8 | <0.8 | <1.0 | <0.85 | <1.0 | <1.2 |
| Echo Loss (dB) (Output cut-off) | >50 | >50 | >50 | >50 | >50 | >50 | >50 |
| Directionality (dB) | >55 | >55 | >55 | >55 | >55 | >55 | >55 |
|
1 1xN (with connector) |
||||||||||||
|
(Number of Channels) |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
2×2 2×4 |
2×8 |
2×16 |
2×32 |
2×64 |
|
|
(Operating Wavelenth) |
1260-1650nm |
|
||||||||||
|
P Level Insertion Loss |
4 |
7.4 |
10.5 |
13.7 |
17 |
20.3 |
4.4 |
7.6 |
10.8 |
14.1 |
17.4 |
20.7 |
|
S Level Insertion Loss |
4.2 |
7.6 |
10.7 |
14 |
17.3 |
20.7 |
4.6 |
7.9 |
11.2 |
15 |
18.1 |
21.7 |
|
(Uniformity) |
0.4 |
0.6 |
0.8 |
1 |
1.2 |
1.6 |
0.8 |
1 |
1.2 |
1.5 |
1.8 |
2 |
|
(PDL) |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
|
(Return Loss) |
more than 55 |
|||||||||||
|
(Directivity) |
more than 55 |
|||||||||||
|
(Type of fiber) |
ITU G657A |
|||||||||||
|
(Operating temperature) |
-40 to 85 |
|||||||||||
|
(Pigtail length) |
1 m-1.5m or customized |
|||||||||||

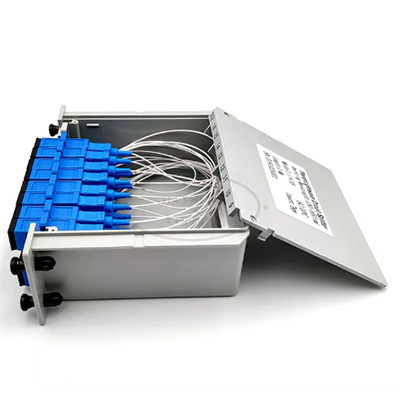

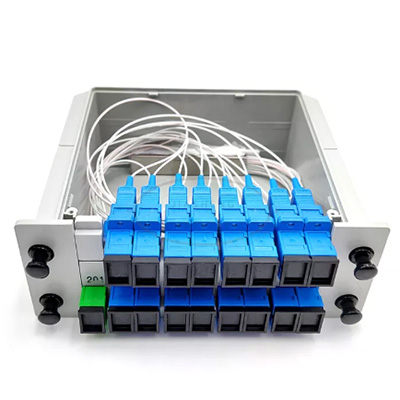

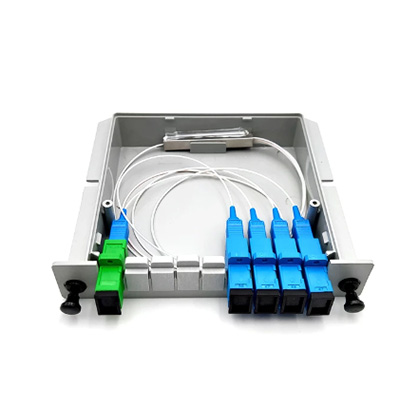

Product detail pictures:
