Wholesale China Patch Cord Optical Factories Manufacturers – FTTA jumper-PDLC-DLC Fiber Outdoor Patch cord – HTLL Detail:
Optical cable assembly, PDLC/DLC, GYFJH,2B.3.SM 2Core. Outdoor
Specification
1. GYFJH Cable
1.1 Structure:
1.2 Application
Mainly used in wireless base station horizontal and vertical cabling
1.3 Features
● Good mechanical and environmental characteristics;
● Flame retardant characteristics meet the requirements of relevant standards;
● The mechanical characteristics of jacket meet the requirements of relevant standards;
● Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
● Meet various requirements of market and clients.
1.4 Cable Parameters
| Fiber Count | Cable Dimension mm |
Cable Weight kg/km |
Tensile N |
Crush N/100mm |
Min. Bend Radius mm |
Range of Temperature | |||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 2 | 7.0 | 42.3 | 200 | 400 | 1100 | 2200 | 20D | 10D | -30-+70 |
| Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; |
|||||||||
2. One single mode fiber
| Item | Unit | Specification |
| Attenuation | dB/km | 1310nm≤0.4 1550nm≤0.3 |
| Dispersion | Ps/nm.km | 1285~1330nm≤3.5 1550nm≤18.0 |
| Zero dispersion wavelength | Nm | 1300~1324 |
| Zero dispersion slope | Ps/nm.km | ≤0.095 |
| Fiber cutoff wavelength | Nm | ≤1260 |
| Mode field diameter | Um | 9.2±0.5 |
| Mode field concentricity | Um | <=0.8 |
| Cladding diameter | um | 125±1.0 |
| Cladding non-circularity | % | ≤1.0 |
| Coating/cladding concentricity error | Um | ≤12.5 |
| Coating diameter | um | 245±10 |
| bending, dependence induced attenuation | 1550nm, 1turns,32mm diameter 100rums,60mm diameter | ≤0.5 db |
| Proof test | kpsi | ≥100 |
3. Connector Specification
| ITEM | PARAMETER |
| Connector type | PDLC-LC/UPC |
| Insertion Loss | <=0.3db |
| Return Loss | >=50db |
| IP level | IP67 |
| Operating wavelength | 1310nm, 1550nm |
| Test wavelength | 1310nm, 1550nm |
| Repeatability | <=0.1 |
| Interchangeability | <=0.2dB |
| Durability | <=0.2dB |
| Fiber Length | 1m, 2m….. any length optional. |
| Length and tolerance | 10cm |
| Operating Temperature | -40C ~ +85C |
| Storage Temperature | -40C ~ +85C |

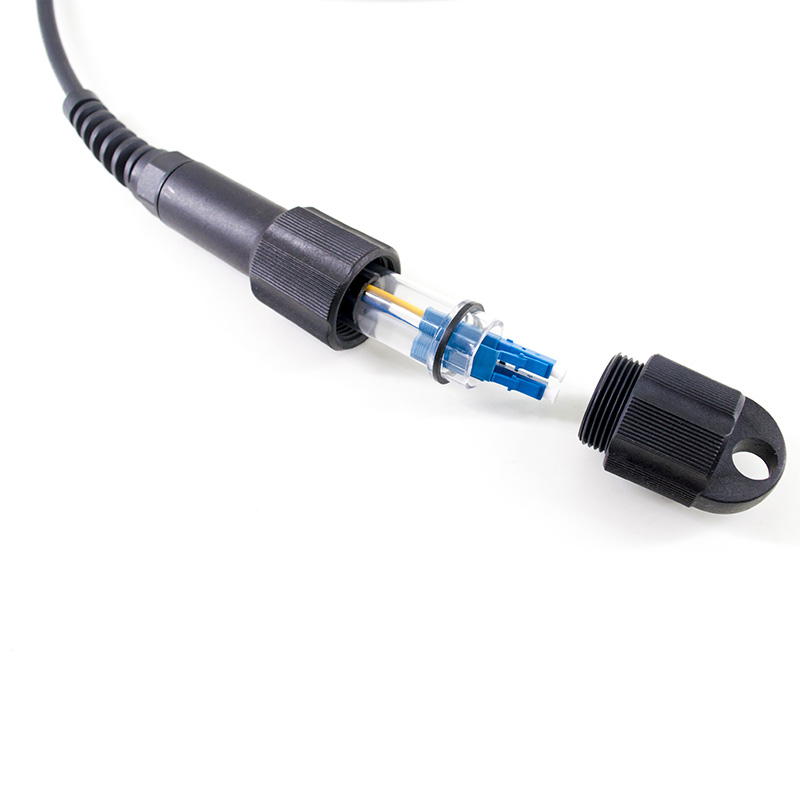

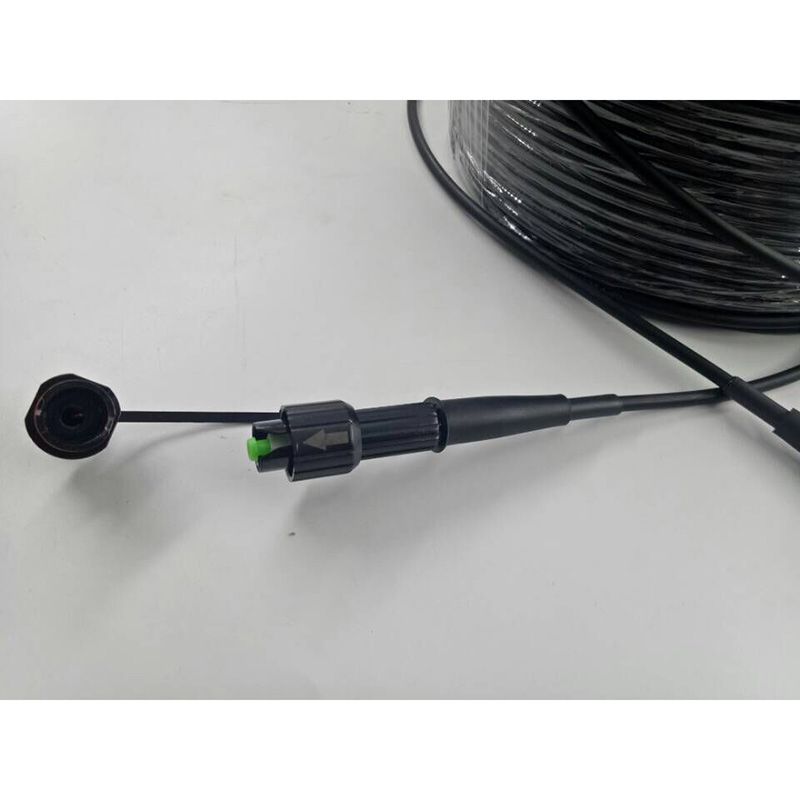

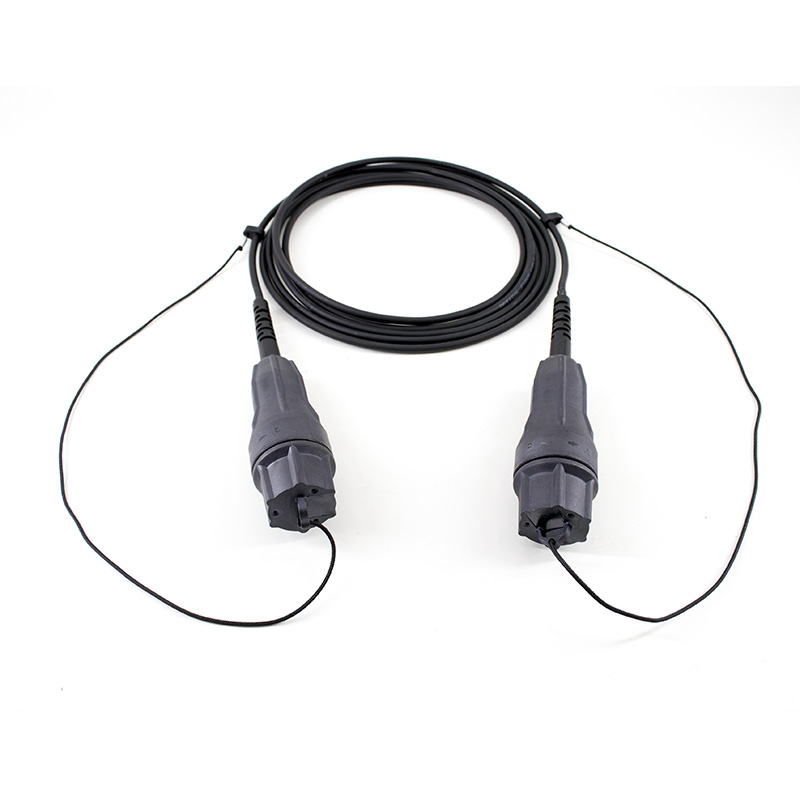

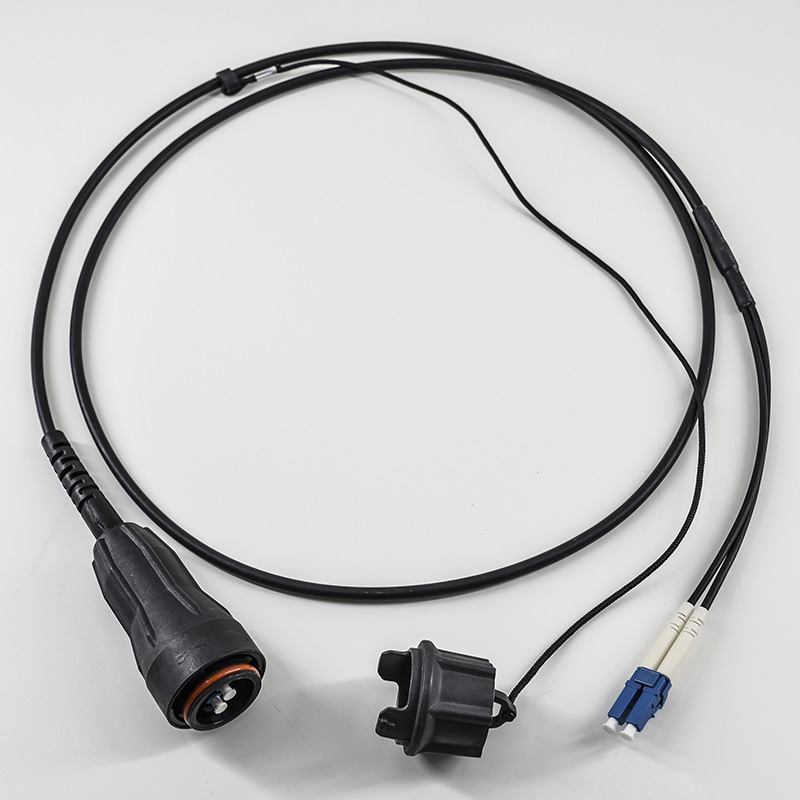

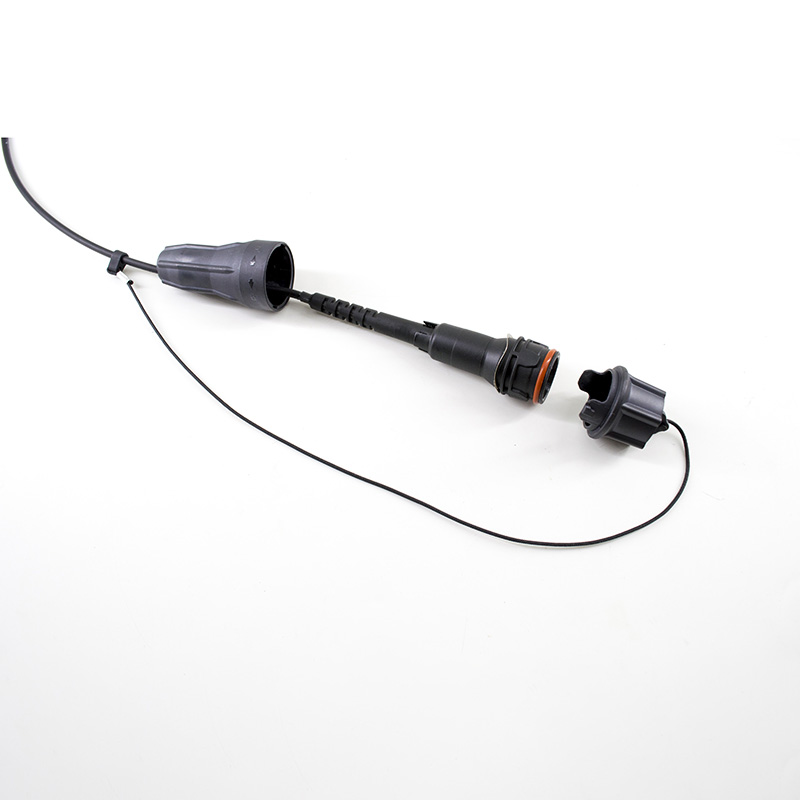

4. Images of the products
5. Reference drawings
Product detail pictures:
