Wholesale China Ribbon Fiber Splice Sleeves Factory Supplier – FTTH Fiber Fusion splice Sleeve for drop cable – HTLL Detail:
Technical Data
Properties |
Test Method |
Typical Data |
Tensile Strength |
ASTM D2671 |
≥18 MPa |
Ultimate Elongation |
ASTM D2671 |
700% |
Dielectric Strength |
IEC 243 |
20 KV/mm |
Dielectric Constant |
IEC 243 |
2.5max |
Longitudinal Change |
ASTM D2671 |
0±5% |
Density |
ISO R1183D |
0.94 g/cm3 |
Specifications
● Inner support steel is made by SUS304 stainless steel
● Working temperature: -45 ~ 110 ℃
● Shrinking temperature range: 120 ℃
● Standard color: Clear
● Custom products available
● Outer tube material of fiber optic protection sleeve is made by polyolefin
● Inner tube material of fiber protective sleeve is made by EVA (ethylene-vinyl acetate)
● Package:50pcs/bag
● Customized Service:Varied size, length and color are available for option
● The Normal Length: 40mm, 60mm
Product | ID | OD | OD after shrink |
Single-pin Drop Fiber Sleeve | 3.8-3.9mm | 5.5-6.0mm | 3.5±0.15mm |
Double-pin Drop Fiber Sleeve | 3.8-3.9mm | 6-6.5mm | 3.75±0.15mm |

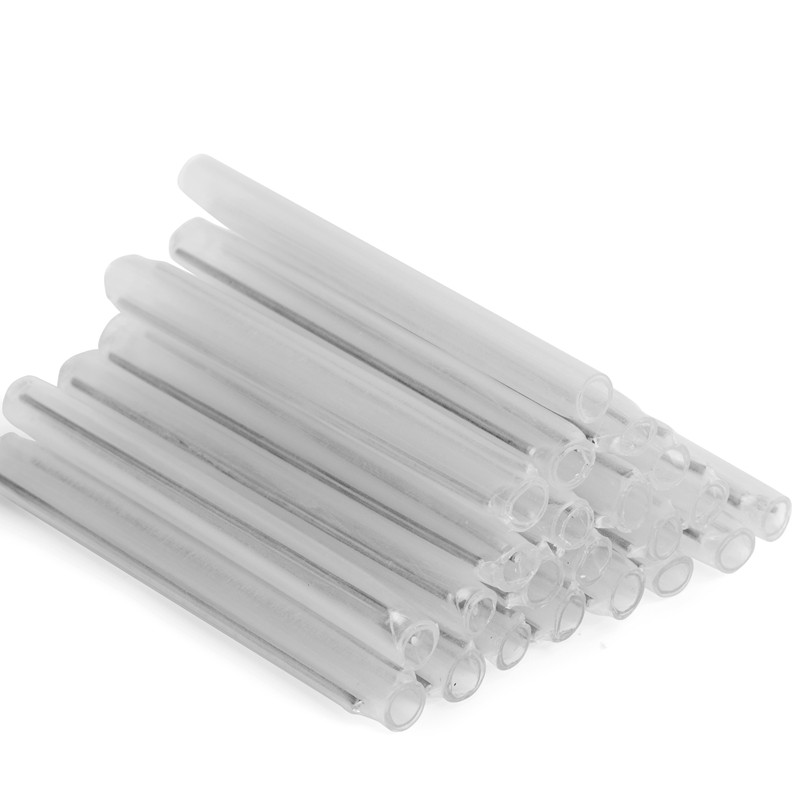

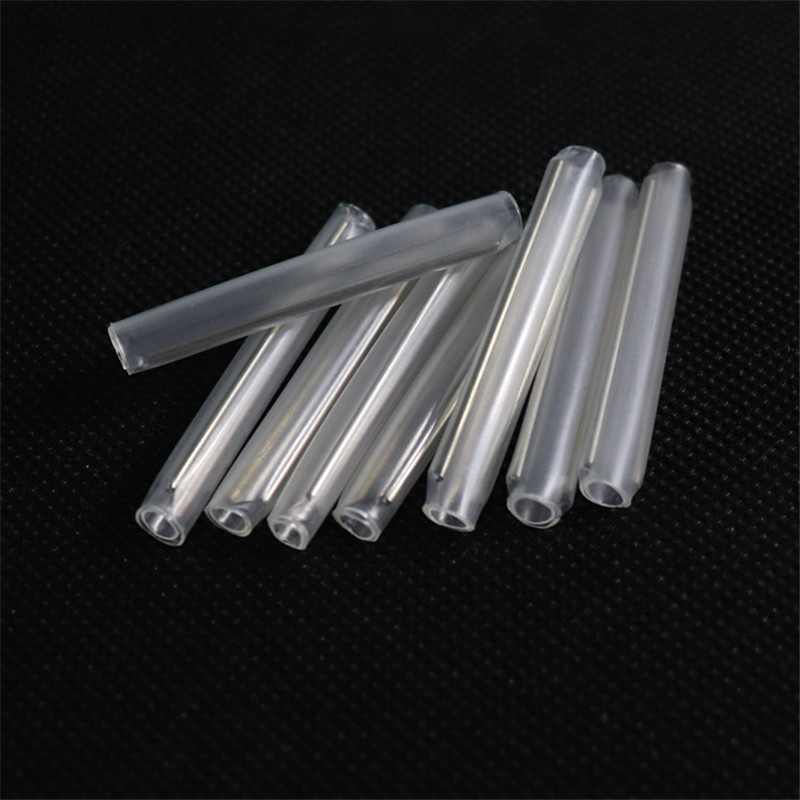

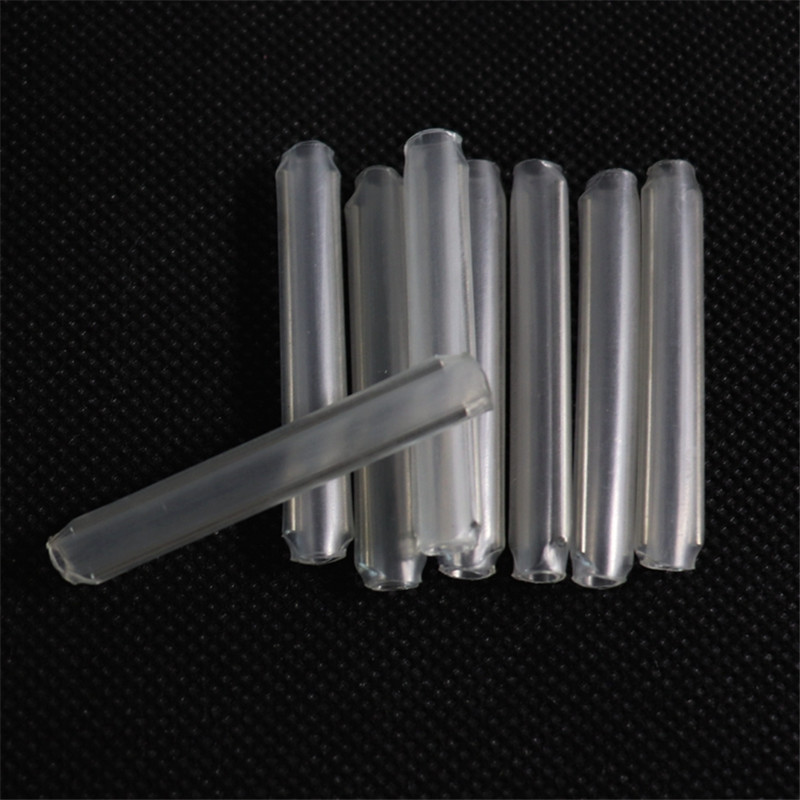

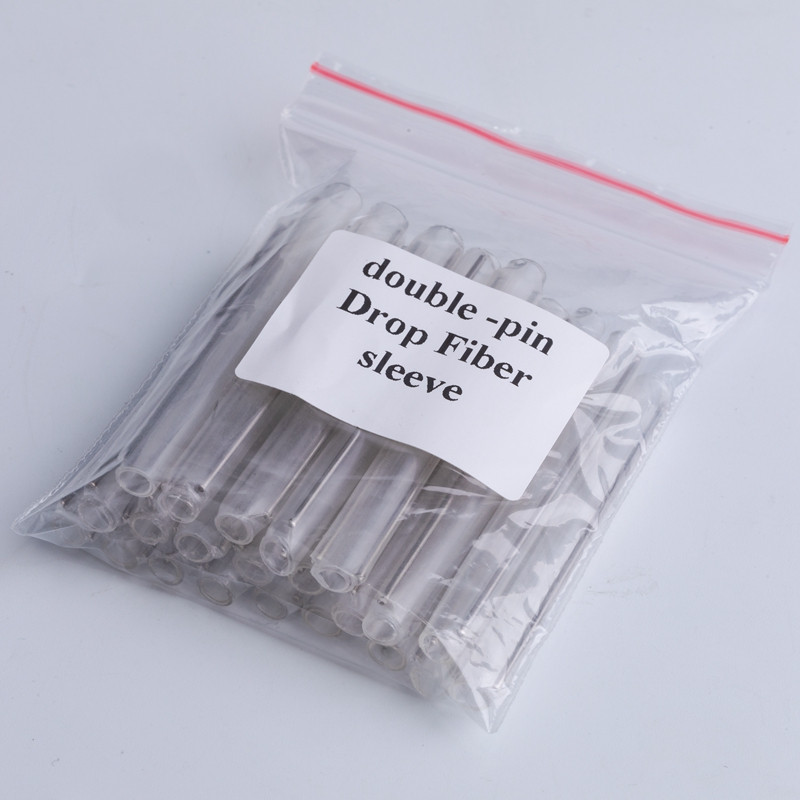

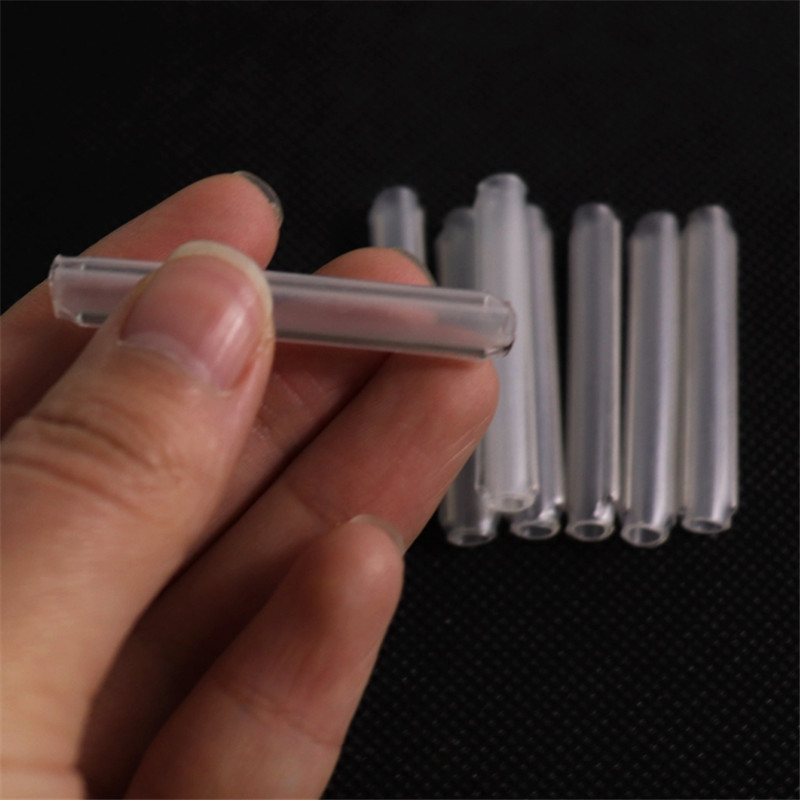

Product detail pictures:
