How do you install a standard 19” rack equipment in to a 23” relay rack or 23” 4 post cabinet?
The answer is simple. You need a 23” to 19” RACK Reducer.The Rack Reducer gives you the 2” extension you need for right side and left of your cabinet to fill the gap.
What is a RACK REDUCER ?

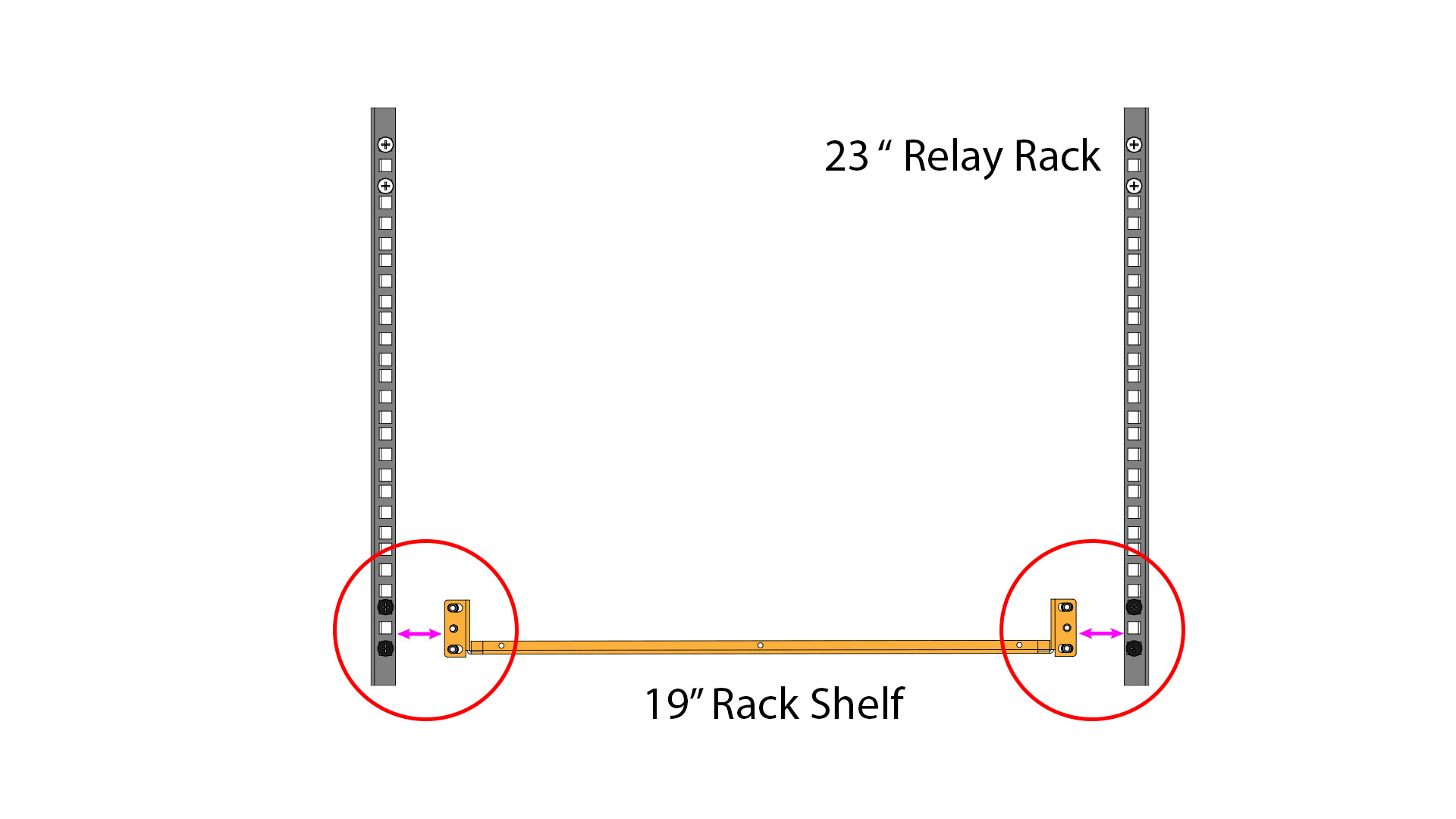

RCB1060 PEM Nut 23” to 19” rack reducer is a special 2” wide bracket design for mounting 19” rack equipment in a 23” cabinet. You need two brackets for right and left side of your cabinet to properly install your 19” rack equipment.
Save Money and save enviroment.
If you own a 23” telecom relay rack or 23” 4 post cabinet, you can reuse and repurpose a section for 19” rack application. Your 23” telecom cabinet offers the exact same features as a standard 19” rack cabinet except for the width. By using our RCB1060 PEM nut rack reducer, instead of paying full price for a brand new 19” rack, you only pay fraction of cost for a pair of RCB1060 rack reducer. You are not only saving money, you are also saving the environment by reusing resource. RCB1060 offer size from 1U up to 5U to choose from
Specifications
| RCB1060-5U | |
| 5U | |
| 16AWG (1.59mm) | |
| Oval Rectangle Slot | |
| 10-32 thread PEM nuts preinstalled | |
| Black Powder Paint | |
| 8.73″ x 2.75″ (221.95mm x 70mm) | |

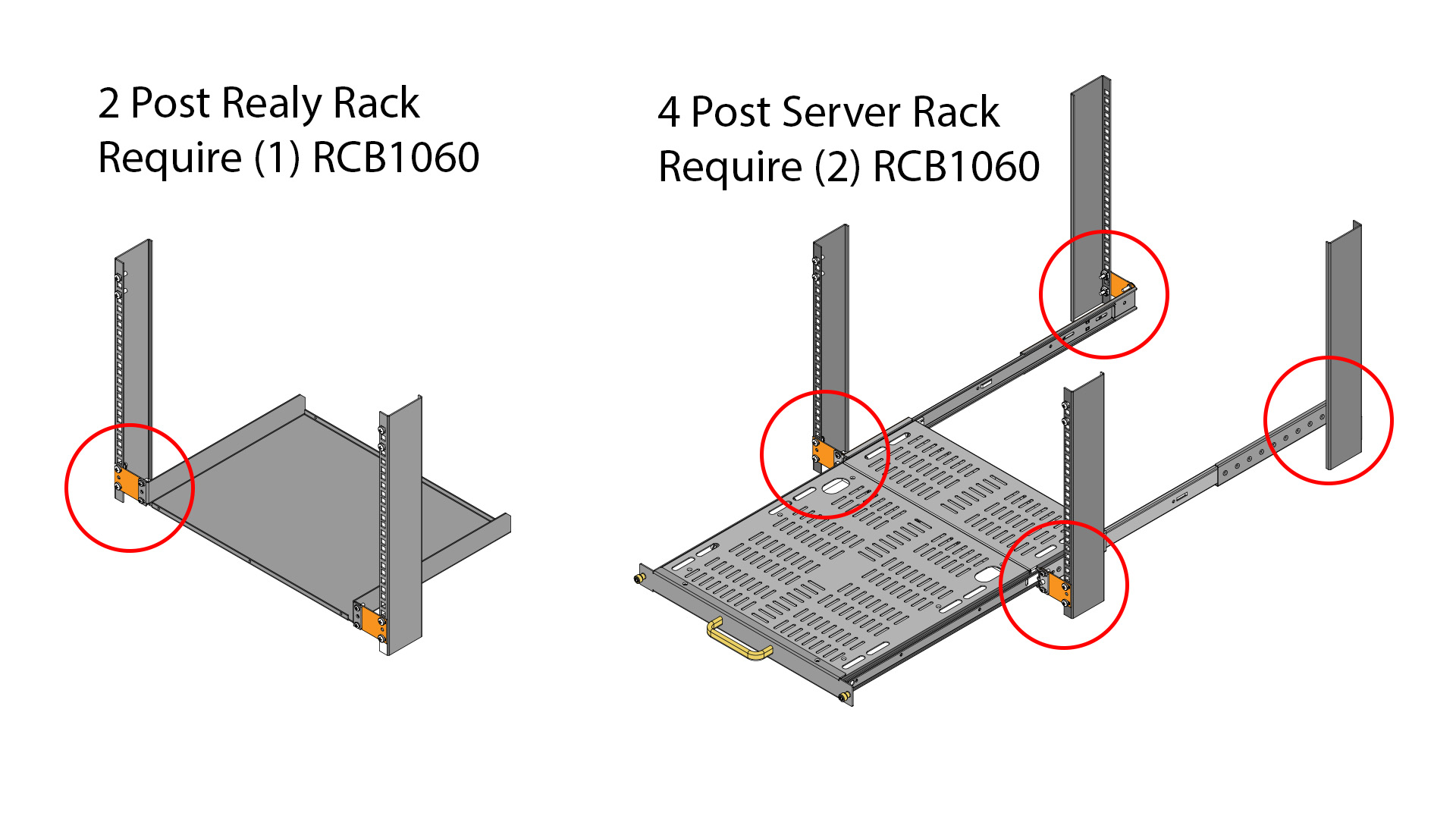

| 50 lb Max for equipment with 8″ depth install on a 2 post relay rack (2 brackets), 100 lb max for 4 post cabinet (4 brackets configuration). | |
| United States (US) | |
| RoHS |
