2 Core Indoor ABS Face Plate FTTH Fiber Optic Termination Box for Applicable for FTTH Ftto and Fttd Network

2 Core Indoor ABS Face Plate FTTH Fiber Optic Termination Box for Applicable for FTTH Ftto and Fttd Network Featured Image
  • 2 Core Indoor ABS Face Plate FTTH Fiber Optic Termination Box for Applicable for FTTH Ftto and Fttd Network
  • 2 Core Indoor ABS Face Plate FTTH Fiber Optic Termination Box for Applicable for FTTH Ftto and Fttd Network
  • 2 Core Indoor ABS Face Plate FTTH Fiber Optic Termination Box for Applicable for FTTH Ftto and Fttd Network

Short Description:

Feature：

  • One SC or LC adapter interface；
  • redundant fiber can be stored inside, easy to use and maintain;
  • reversible disk increase the distribution space with clear splicing and wiring , zone, the line crossing is reduced;
  • heat or mechanical splicing，Widely used, especially for multi-story and high rise buildings;
  • Fully enclosed panel box，additional transparent cover at the outlet to achieve better dustproof effect.

Whatsapp

Product Detail

Product Tags

Description

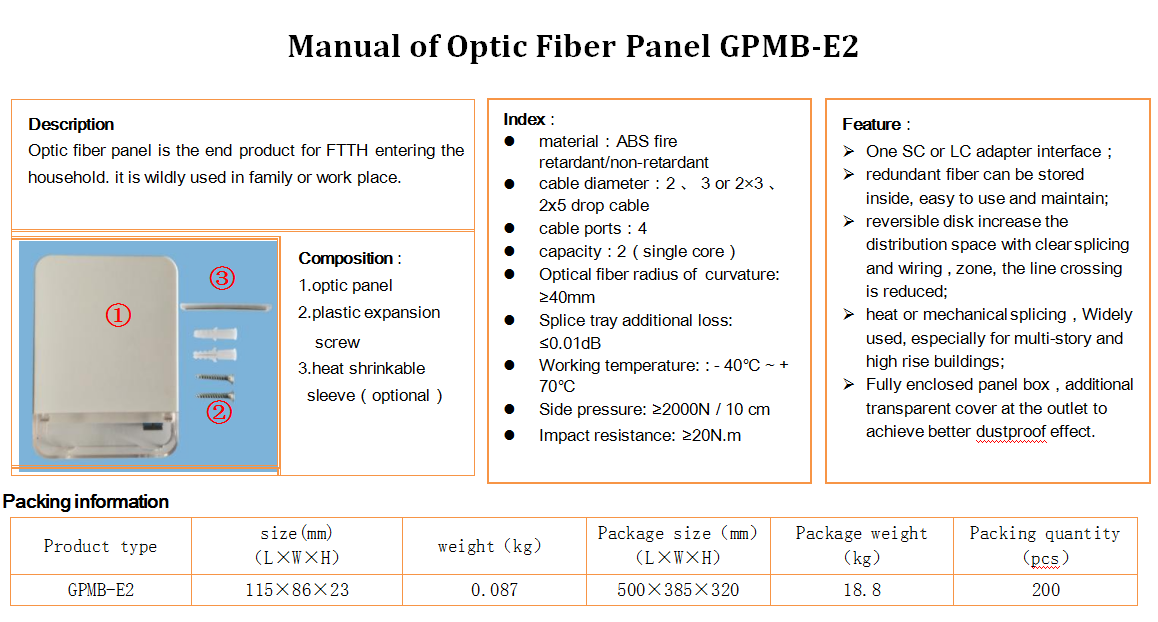

Optic fiber panel is the end product for FTTH entering the household. it is wildly used in family or work place.

Index：

l material：ABS fire retardant/non-retardant

l cable diameter：2 、 3 or 2×3 、2x5 drop cable

l cable ports：4

l capacity：2（single core）

l Optical fiber radius of curvature:

≥40mm

l Splice tray additional loss:

≤0.01dB

l Working temperature: : - 40℃ ~ + 70℃

l Side pressure: ≥2000N / 10 cm

l Impact resistance: ≥20N.m

E2 E2-2
