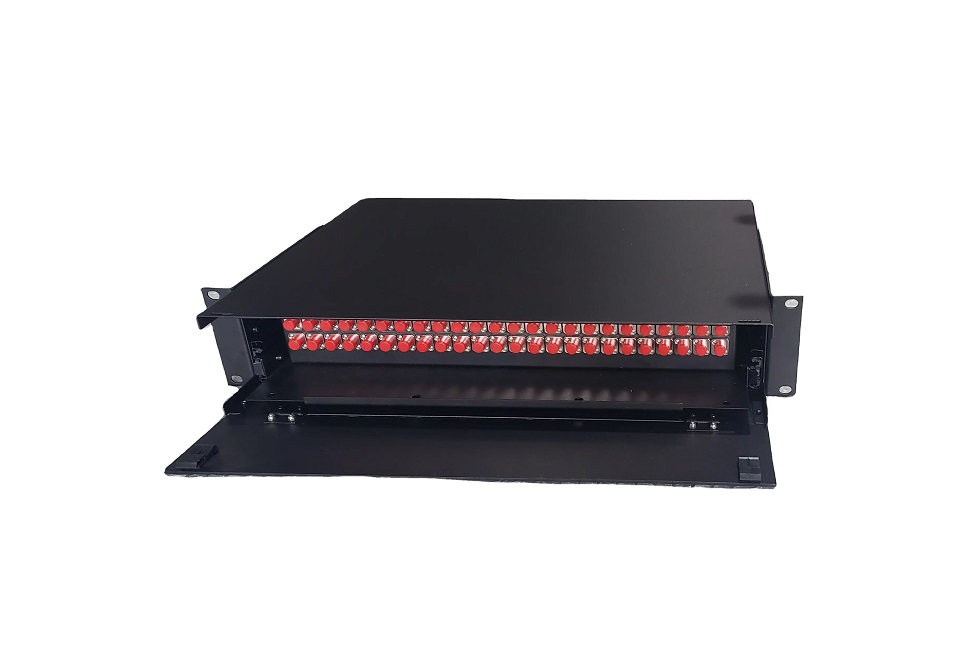

FTTH 19″ ODF 48 Core FC Fiber Distribution Frame Fiber Optic Patch Panel

Short Description:

1)Two rack mounting ears with their fixing and mounting screws, allow to be adjusted to different positions

2)19 inch 2 RU cabinet´s front cover or cap, with respectives locks (2)

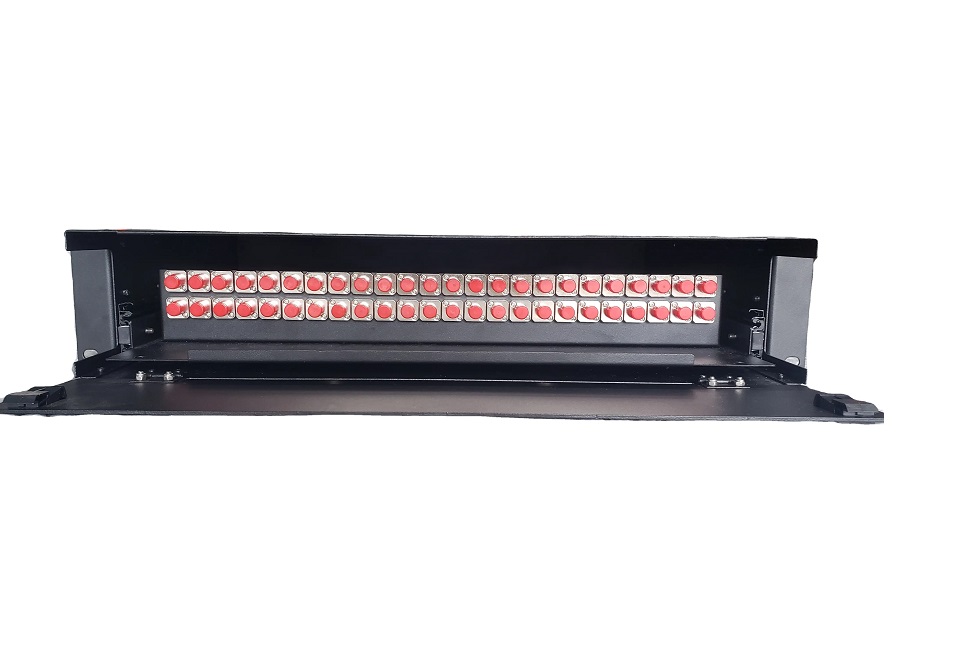

3) 48 FC / UPC adapters

4) 48 pieces, 1.5 meter pigtails G657A2

5) Black color

6) 19-inch cabinet, 482mm x340.6mm x 88.5mm

7) Cabinet´s sliding rails

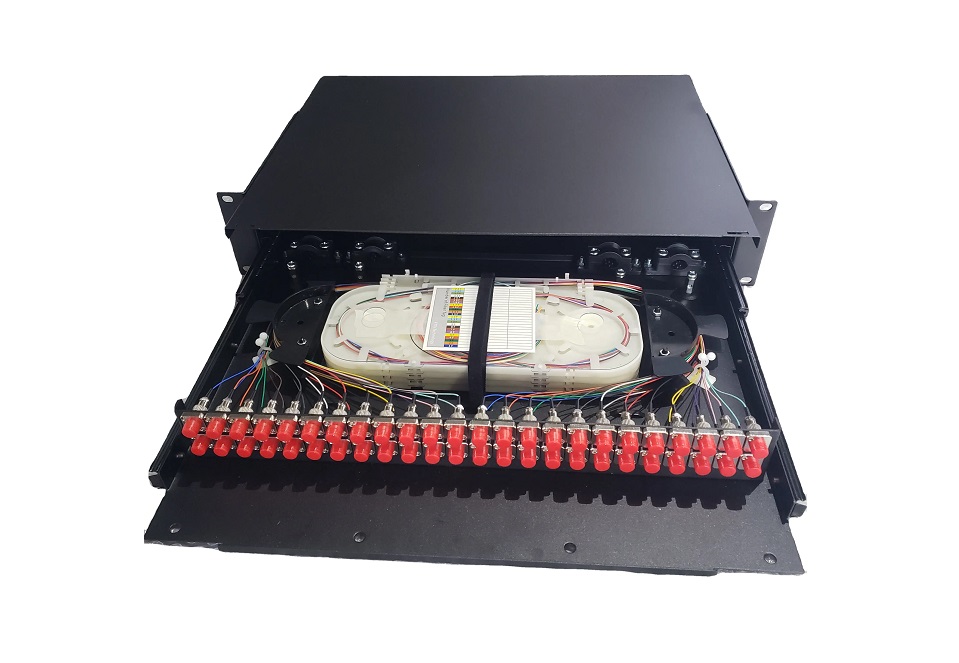

8) 2pcs 24 Ports fiber optic splice tray with its cover,4 pcs half spool fiber manager

9) Installation accessories bags (install screw, 48pcs fiber heat shrink sleeve,cable tie)

Product Detail

Product Tags


The Shape of Optical Patch Panel with Sliding design.its easy to operate when install.

Have cover in the front. Its dust-proof.

High density Fiber Optical Patch Panel.Maximum capacity can reach 96 cores in 1RU height.

OEM Service.more capacity, more height. it can reach at 4RU.

Plastic Parts material is High-Quality ABS.

Available lower density.


Optical cable introduction, wiring pigtails leading out, fixing and protecting the performance of optical cables, wiring pigtails and the optical fibers in it from damage.

Protecting the fiber optic cable terminal from environmental influences.

Insulating the metal components of the optical cable from the shell of the optical cable terminal box and being able to easily lead to the ground.

Provide optical cable terminal placement and remaining optical fiber storage space, and make the installation and operation convenient.

The box body of Fiber Optical Patch Panel can be fixed with sufficient impact strength and has corresponding installation functions for different use occasions.

When necessary,2u Patch Panel have the function of Slidable Patch Panel optical cable branch connection and functional requirements.

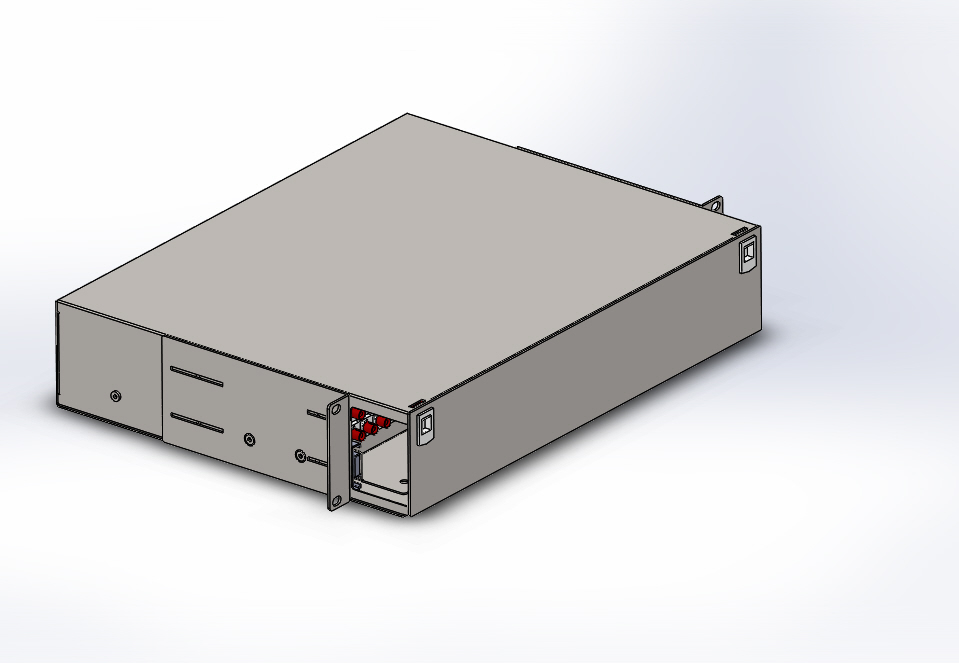

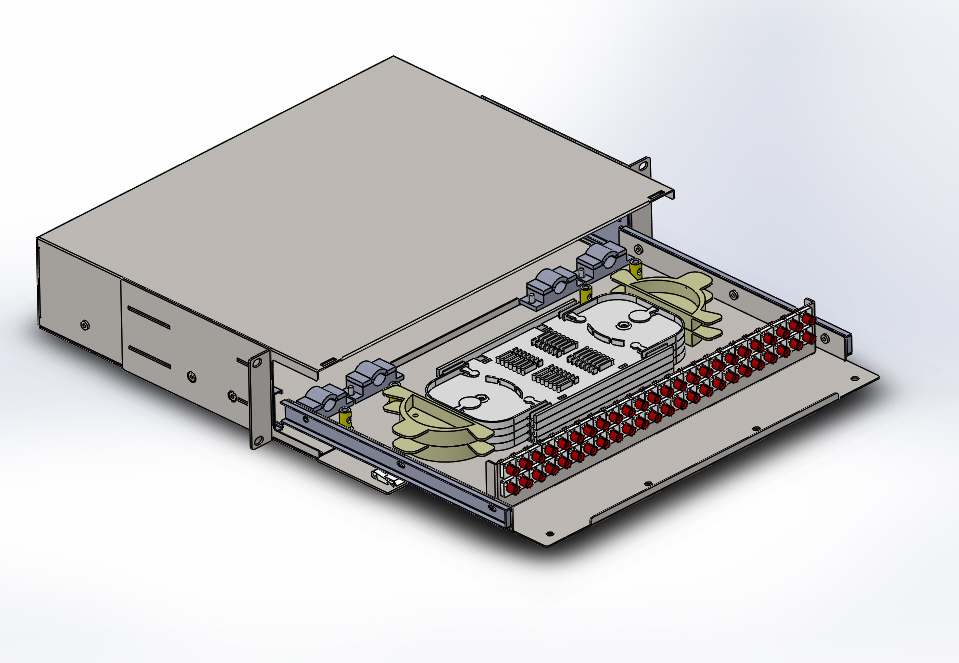

效果图1 效果图6

Inputs / Outputs (quantity × range)

4× 8–16 mm

Grommets (type and number of used grommets)

2× PG16


1.2mm Cold Roll Steel SPCC


light gray RAL 7035 or customized color

Dimensions (H × W × D)

88× 483 × 340.6 mm



IP Rating

IP 20

Operating Temperature




Accept adapter
