Factory Sales Rack Mount Fiber Termination Box

Short Description:

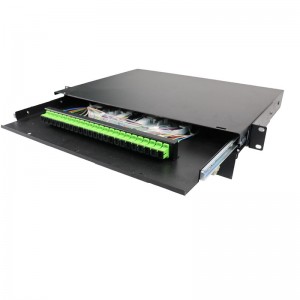

19″ Optic ODF Fiber Panel is designed for both terminal and splicing, accepts whole range of adapters including SC, ST, FC, LC fiber adapters.  2 * Rear cable entries accommodate cables with diameter below 16mm. Inside Fiber Optic Splice Tray stacked and available for 96 cores (for Quadruple LC) terminated inside, and Fiber Half Spool with 35mm bending radius guarantee all modes fiber storage inside with additional low bending loss. Individual front whole adapter plate use screws to fix, easy to assemble and exchange. The metal Frame ODF is made by cold rolled steel1.2 mm, and in 1U finished height.


Product Detail

Product Tags

Features

The Shape of Optical Patch Panel with Sliding design.its easy to operate when install.

Have cover in the front. Its dust-proof.

High density Fiber Optical Patch Panel.Maximum capacity can reach 96 cores in 1RU height.

OEM Service.more capacity, more height. it can reach at 4RU.

Plastic Parts material is High-Quality ABS.

Available lower density.

Functions

Optical cable introduction, wiring pigtails leading out, fixing and protecting the performance of optical cables, wiring pigtails and the optical fibers in it from damage.

Protecting the fiber optic cable terminal from environmental influences.

Insulating the metal components of the optical cable from the shell of the optical cable terminal box and being able to easily lead to the ground.

Provide optical cable terminal placement and remaining optical fiber storage space, and make the installation and operation convenient.

The box body of Fiber Optical Patch Panel can be fixed with sufficient impact strength and has corresponding installation functions for different use occasions.

When necessary, it should have the function of Slidable Patch Panel optical cable branch connection and functional requirements.

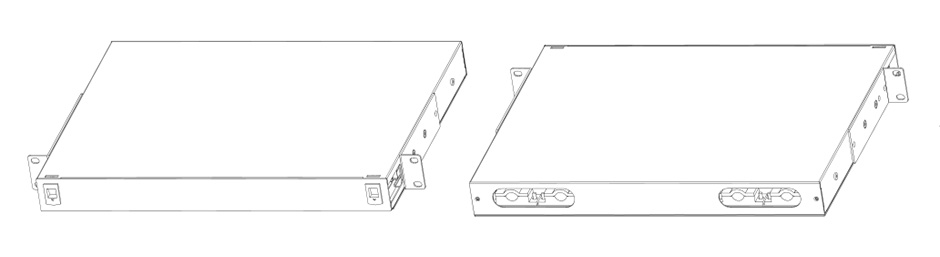

Fiber Optic Splice Tray 04

Inputs / Outputs (quantity × range)

4× 8–16 mm

Grommets (type and number of used grommets)

2× PG16

Material

1.2mm Cold Roll Steel SPCC

Color

light gray RAL 7035 or customized color

Dimensions (H × W × D)

44 × 483 × 340.6 mm

Weight

4.4 kg

IP Rating

IP 20

Operating Temperature

-40℃~+50℃

Package

5pcs/carton

Accept adapter

 SC, ST, FC, LC
