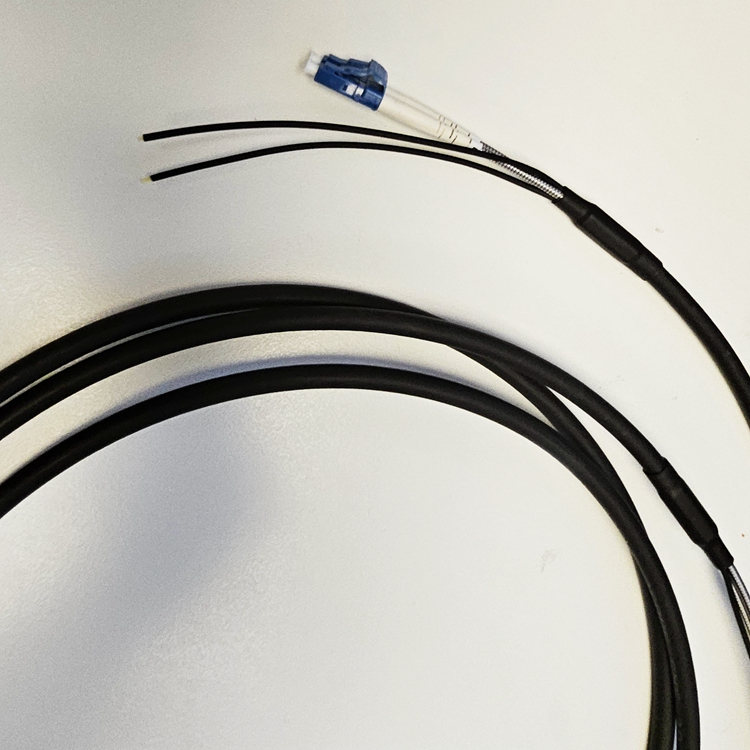

3m LC UPC to LC UPC Simplex OS2 Single Mode 7.0mm LSZH FTTA Outdoor Fiber Patch Cable
Short Description:
Specification
- GYFJH Cable
1.1 Structure:
1.2 Application
Mainly used in wireless base station horizontal and vertical cabling
1.3 Features
1, Good mechanical and environmental characteristics;
2, Flame retardant characteristics meet the requirements of relevant standards;
3, The mechanical characteristics of jacket meet the requirements of relevant standards;
4, Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
5, Meet various requirements of market and clients
1.4 Cable Parameters
| Fiber Count | Cable Dimension
mm |
Cable Weight
kg/km |
Tensile
N |
Crush
N/100mm |
Min. Bend Radius
mm |
Range of Temperature
|
|||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 2 | 7.0 | 42.3 | 200 | 400 | 1100 | 2200 | 20D | 10D | -30-+70 |
| Note: 1. All the values in the table, which are for reference only, are subject to change without notice;
2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; |
|||||||||
- one single mode fiber
|
Item |
Unit |
Specification |
|
Attenuation |
dB/km |
1310nm≤0.4 1550nm≤0.3 |
|
Dispersion |
Ps/nm.km |
1285~1330nm≤3.5 1550nm≤18.0 |
|
Zero dispersion wavelength |
Nm |
1300~1324 |
|
Zero dispersion slope |
Ps/nm.km |
≤0.095 |
|
Fiber cutoff wavelength |
Nm |
≤1260 |
|
Mode field diameter |
Um |
9.2±0.5 |
|
Mode field concentricity |
Um |
<=0.8 |
|
Cladding diameter |
um |
125±1.0 |
|
Cladding non-circularity |
% |
≤1.0 |
|
Coating/cladding concentricity error |
Um |
≤12.5 |
|
Coating diameter |
um |
245±10 |
|
bending, dependence induced attenuation |
1550nm, 1turns,32mm diameter 100rums,60mm diameter |
≤0.5 db |
|
Proof test |
kpsi |
≥100 |
- Connector Specification
|
ITEM |
PARAMETER |
|
Connector type |
DLC/UPC . FC/UPC |
|
Insertion Loss |
<=0.3db |
|
Return Loss |
>=50db |
|
Fiber mode |
Single mode 9/125 |
|
Operating wavelength |
1310nm, 1550nm |
|
Test wavelength |
1310nm, 1550nm |
|
Repeatability |
<=0.1 |
|
Interchangeability |
<=0.2dB |
|
Durability |
<=0.2dB |
|
Fiber Length |
1m, 2m….. any length optional. |
|
Length and tolerance |
10cm |
|
Operating Temperature |
-40C ~ +85C |
|
Storage Temperature |
-40C ~ +85C |

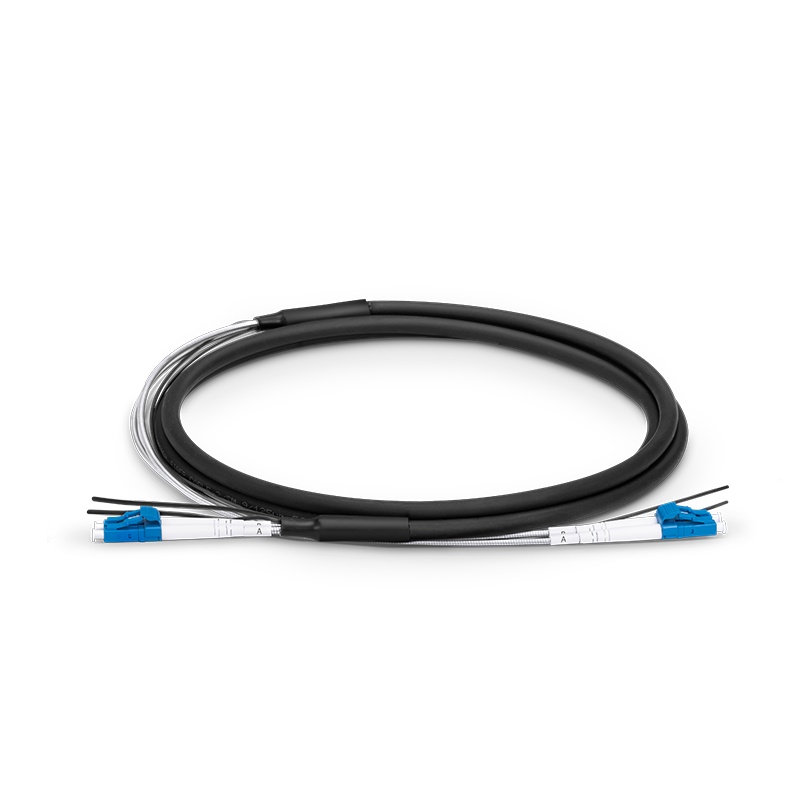

FTTA patch cable is designed for high reliability in heavy industrial and harsh environment applications, including fiber to the antenna solution.

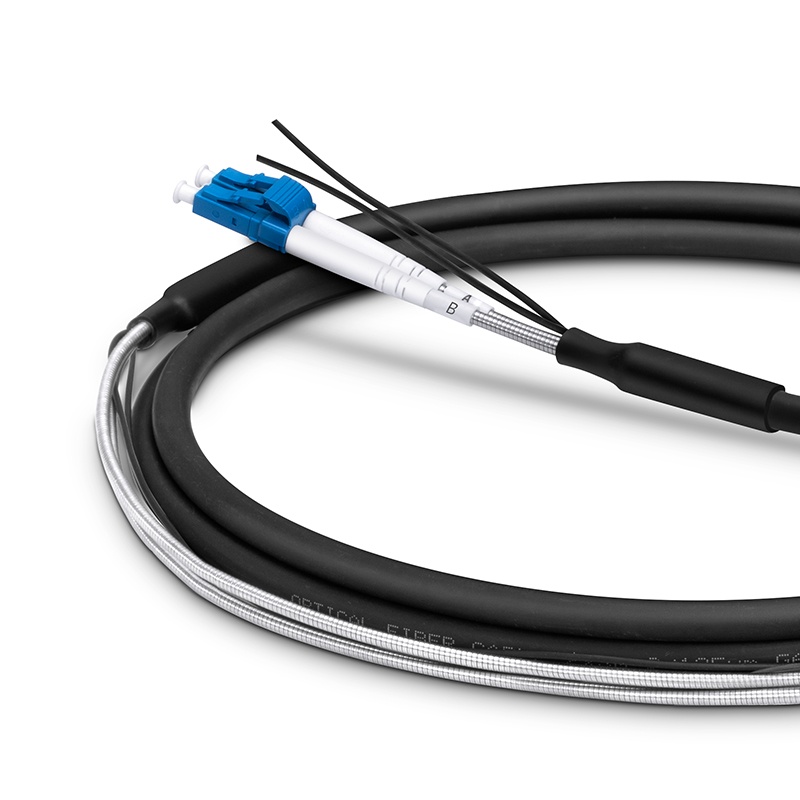

Consisting of Corning fiber cable and LC UPC duplex connectors, the cable features superior crush resistance and a high degree of flexibility with the armored tube. Furthermore, the cable features a flame retardant LSZH jacket which is UV stabilized and highly resistant to chemicals commonly found in industrial environments, also suitable for both indoor and outdoor industrial installations
