FTTA jumper-PDLC-DLC Fiber Outdoor Patch cord

Short Description:

Good mechanical and environmental characteristics;

Flame retardant characteristics meet the requirements of relevant standards;

The mechanical characteristics of jacket meet the requirements of relevant standards;

Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;

Meet various requirements of market and clients。


Product Detail

Product Tags

Optical cable assembly, PDLC/DLC, GYFJH,2B.3.SM 2Core. Outdoor

FTTA jumper-PDLC-DLC Fiber Outdoor Patch cord8

Specification

1. GYFJH Cable

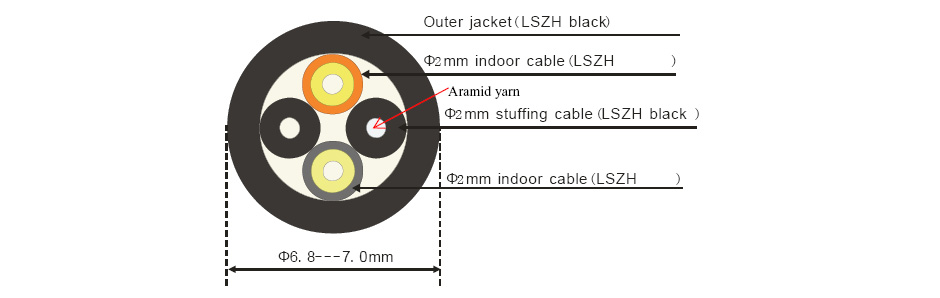

1.1 Structure:

1.GYFJH Cable

1.2 Application
Mainly used in wireless base station horizontal and vertical cabling

1.3 Features
Good mechanical and environmental characteristics;
Flame retardant characteristics meet the requirements of relevant standards;
The mechanical characteristics of jacket meet the requirements of relevant standards;
 Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
 Meet various requirements of market and clients.

1.4 Cable Parameters

Fiber Count Cable Dimension
mm
Cable Weight
kg/km
Tensile
N
Crush
N/100mm
Min. Bend Radius
mm
Range of Temperature

Long Term Short Term Long Term Short Term Dynamic Static
2 7.0 42.3 200 400 1100 2200 20D 10D -30-+70
Note: 1. All the values in the table, which are for reference only, are subject to change without notice;
2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter;
3. D is outer diameter of the round cable;

2. One single mode  fiber

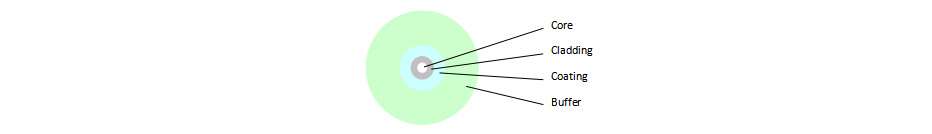

1.Tight-buffered Cable Specification

Item Unit Specification
Attenuation dB/km 1310nm≤0.4
1550nm≤0.3
Dispersion Ps/nm.km 1285~1330nm≤3.5
1550nm≤18.0
Zero dispersion wavelength Nm 1300~1324
Zero dispersion slope Ps/nm.km ≤0.095
Fiber cutoff wavelength Nm ≤1260
Mode field diameter Um 9.2±0.5
Mode field concentricity Um <=0.8
Cladding diameter um 125±1.0
Cladding non-circularity % ≤1.0
Coating/cladding concentricity error Um ≤12.5
Coating diameter um 245±10
bending, dependence        induced attenuation 1550nm,  1turns,32mm diameter  100rums,60mm diameter ≤0.5 db
Proof test kpsi ≥100

3. Connector Specification

ITEM PARAMETER
Connector type PDLC-LC/UPC
Insertion Loss <=0.3db
Return Loss >=50db
IP level IP67
Operating wavelength 1310nm, 1550nm
Test wavelength 1310nm, 1550nm
Repeatability <=0.1
Interchangeability <=0.2dB
Durability <=0.2dB
Fiber Length 1m, 2m….. any length optional.
Length and tolerance 10cm
Operating Temperature -40C ~ +85C
Storage Temperature -40C ~ +85C

 4. Images of the products

FTTA jumper-PDLC-DLC Fiber Outdoor Patch cord11
FTTA jumper-PDLC-DLC Fiber Outdoor Patch cord10

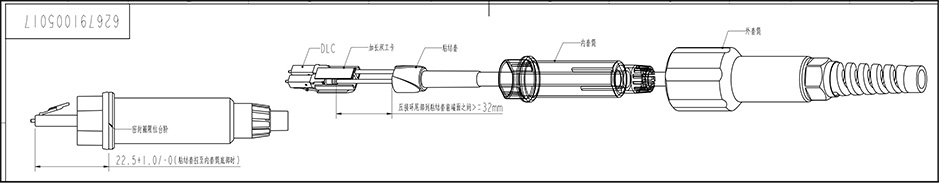

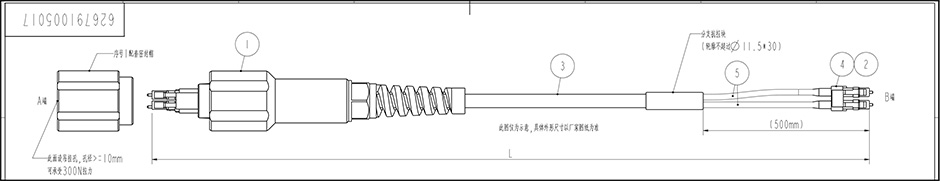

5. Reference drawings
