2.0mm SX MM Fiber Optic Patch cord

Short Description:

FIBER OPTIC PATCH CORD-MM(OM2, OM3, OM4)

A patch cord is a fiber optic cable used to attach one device to another for signal routing. Normally, there are 4 types connector: FC/SC/LC/ST.. 2types ferrule: PC, UPC.

FC stands for Fixed Connection. It is fixed by way of threaded barrel housing. FC connectors are generally constructed with a metal housing and are nickel-plated.


Product Detail

Product Tags

A patch cord is a fiber optic cable used to attach one device to another for signal routing. Normally, there are 4 types connector: FC/SC/LC/ST.. 2types ferrule: PC, UPC,

FC stands for Fixed Connection. It is fixed by way of threaded barrel housing. FC connectors are generally constructed with a metal housing and are nickel-plated.

 FC Connectors…

Fiber Optic Patch cord09

SC stands for Subscriber Connector- a general purpose push/pull style connector. It is a square, snap-in connector latches with a simple push-pull motion and is keyed.

SC Connectors…

Fiber Optic Patch cord08

LC patch cord is a fiber optic cable used to attach one device to another for signal routing. LC stands for Lucent Connector. It is a small form-factor fiber optic connector, half the size of the SC.

LC Connectors…

Fiber Optic Patch cord00

ST stands for Straight Tip- a quick release bayonet style connector. ST connectors are cylindrical with twist lock coupling. They are push-in and twist types

ST Connectors…

Fiber Optic Patch cord010

PC stands for Physical Contact. With the PC connector, the two fibers meet as they do with the flat connector, but the end faces are polished to be slightly curved or spherical. This eliminates the air gap and forces the fibers into contact

Fiber Optic Patch cord011

UPC stands for Ultra Physical Contact. The end faces are given an extended polishing for a better surface finish. These connectors are often used in digital, CATV, and telephony systems.

Fiber Optic Patch cord012

Features

Complying with IEC, Telcordia GR-326-CORE, YD-T 1272.3-2005, standard

Low insertion loss, high return loss

High dense connection, easy for operation

High credibility and stability

Good in repeatability and exchangeability

Application

Testing equipment

FTTX+LAN

Optical fiber CATV

Optical communication system

Telecommunication

Specification

1. Tight-buffered Cable Specification
Profile View:

1.Tight-buffered Cable Specification

2. Fiber Parameter

ITEM PARAMETER
Fiber type OM1 OM2, OM3, OM4
Core Diameter 50  + 2.5
Core Non-Circularity <=5.0 %
Cladding Diameter 125.0+1.0um
Cladding Non-Circularity <=1.0 %
Coating Diameter 245+7
Coating-Cladding Concentricity Error <=12.0um
Coating Non-Circularity <=6.0um
Core-Cladding Concentricity Error <=1.0um
Attenuation 850nm <=2.3
1300nm <=0.6
Numerical Aperture (NA) 0.200 + 0.015
Step( mean to bidirectional measurement) <=0.10 dB
Irregularities Over fiber length and point discontinuity <=0.10 dB
Difference backscatter coefficient (bidirectional measurement) <=0.08 db/km
OFL Bandwidth (MHz.km)   OM2 OM3 OM4
850nm >=700 >=1500 >=3500
1300nm >=500 >=500 >=500
Effective Modal Bandwidth@850nm(MHz.km) >=950 >=2000 >=4700
Application support distance on OM2 OM3 OM4
10Gigabit Ethernet SX 850nm (m) 150 300 550
Gigabit Ethernet SX 850nm (m) 750 1000 1100
Gigabit Ethernet LX 1300nm (m) 600 600 600
40&100 Gigabit Ethernet 850nm (m)   100 150

3. Cable Parameters

ITEM PARAMETER
Outer cable Outer Diameter 0.9/2.0/3.0mm optional
Material PVC
Color Orange
Inner cable Outer Diameter 0.9mm tight buffer
Material PVC
Color White (SX)    White & Orange(DX)
Resistance Simple 100N
Duplex 200N
Drug times 500
Operate Temperature -20~+60
Storage Temperature -20~+60

4. Connector Specification

ITEM PARAMETER
Connector type LC/UPC,SC/UPC, FC/UPC, ST/UPC. Optional
Fiber mode  OM2, OM3, OM4
Operating wavelength 850, 1300nm
Test wavelength 850, 1300nm
Insertion Loss <=0.2db
Return Loss >=35db
Repeatability <=0.1
Interchangeability <=0.2dB
Durability <=0.2dB
Fiber Length 1m,2m….. any length optional.
Length and tolerance 10cm
Operating Temperature -40C ~ +85C
Storage Temperature -40C ~ +85C

5. Image for reference

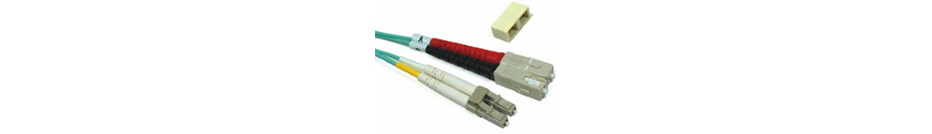

1.Tight-buffered Cable Specification1
