ABS PLC Fiber Optical Splitter Boxes

Short Description:

Planar waveguide optical splitter (PLC Splitter) is an integrated waveguide optical power distribution device based on quartz substrate. It has the characteristics of small size, wide wavelength range, high reliability and good spectral uniformity. Particularly suitable for passive optical networks (EPON, BPON, GPON, etc.) to connect local and terminal devices and achieve optical signal splitting. evenly distribute the optical signals to the users. The branch channels usually have 2, 4, 8 channels, and more can reach 32 channels and above We can provide 1xN and 2xN series products and customize optical splitters for customers in various situations.

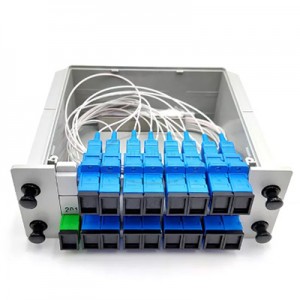

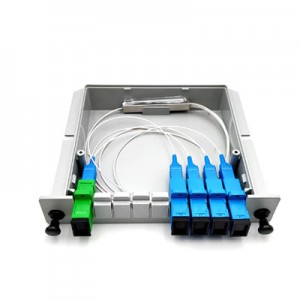

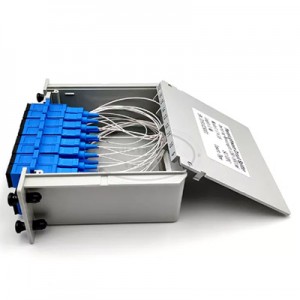

Splitter Cassette Card Insertion Type ABS PLC Splitter box is one of the packaging methods of PLC splitter. In addition to the ABS box type, PLC splitters are also classified into rack type, bare wire type, insert type, and tray type. ABS PLC splitter is the most commonly used splitter in PON networks


Product Detail

Product Tags

Features

Fiber splitters with Excellent Mechanical,Small Size. It can provide easier and more flexible wiring. Plc splitter can be directly installed in various existing junction boxes without the need. Leave a lot of installation space.

1*16 fiber Splitter High Reliability.

Fiber optic splitter Low insertion Loss and low Polarization Dependent loss.

ABS PLC Splitter Boxes with High channel counts.

PLC Optic Splitter with Excellent Environmental Stability and Widely Used, Uniform light distribution and good stability.

The loss is insensitive to the wavelength of the transmitted light, the insertion loss is low, and the light splitting is uniform. There are many shunt channels for a single device, which can reach more than 32 channels.

Applications

FTTX Systems Deployments(GPON/BPON/EPON)

FTTH Systems

Passive optical networks PON

Cable television CATV Links

Optical Signal Distribution

Local area networks (LAN)

Test equipment

Adapter compatible: FC, SC, LC, ST, MPO

Performance indicators

Specifications 1*2 1*4 1*8 1*16 1*32 1*64 1*128
Fiber type G.657.A
Working wavelength 1260nm~1650nm
Maximum insertion loss (dB) <3.6 <6.9 <10.3 <13.5 <16.6 <20.1 <23.4
Port insertion loss uniformity (dB) <0.5 <0.5 <0.5 <0.8 <1.0 <1.5 <1.5
Interwavelength Loss
Uniformity (dB)
<0.5 <0.5 <0.5 <0.8 <0.85 <0.85 <1.0
Echo Loss (dB) (Output cut-off) >50 >50 >50 >50 >50 >50 >50
Directionality (dB) >55 >55 >55 >55 >55 >55 >55
Specifications 2*2 2*4 2*8 2*16 2*32 2*64 2*128
Fiber type G.657.A
Working wavelength 1260nm~1650nm
Maximum insertion loss (dB) <4.1 <7.4 <10.5 <13.8 <17.0 <20.4 <23.7
Port insertion loss uniformity (dB) <0.5 <0.8 <0.8 <1.0 <1.5 <2.0 <2.0
Interwavelength Loss Uniformity (dB) <0.8 <0.8 <0.8 <1.0 <0.85 <1.0 <1.2
Echo Loss (dB) (Output cut-off) >50 >50 >50 >50 >50 >50 >50
Directionality (dB) >55 >55 >55 >55 >55 >55 >55

1 1xN (with connector)

(Number of Channels)

1x2

1x4

1x8

1x16

1x32

1x64

2x2 2x4

2x8

2x16

2x32

2x64

(Operating Wavelenth)

1260-1650nm



P Level Insertion Loss

4

7.4

10.5

13.7

17

20.3

4.4

7.6

10.8

14.1

17.4

20.7

S Level Insertion Loss

4.2

7.6

10.7

14

17.3

20.7

4.6

7.9

11.2

15

18.1

21.7

(Uniformity)

0.4

0.6

0.8

1

1.2

1.6

0.8

1

1.2

1.5

1.8

2

(PDL)

0.2

0.3

0.3

0.3

0.3

0.5

0.3

0.3

0.3

0.3

0.3

0.5

(Return Loss)

more than 55

(Directivity)

more than 55

(Type of fiber)

ITU G657A

(Operating temperature)

-40 to 85

(Pigtail length)

1 m-1.5m or customized
