Colorful Fiber optic fusion splice sleeve

Short Description:

Fiber splice sleeve is compose of reinforced steel wire, hot melt tube and cross-linked polyolefin. providing SS304 or SS201 strength member and protection to fiber optical splices.

It can reconstruct overlay fiber and can provide good mechanical strength at the junction, to ensure good optical transmission properties.

Colorful Splice Protectors same as Clear Splice Protectors, only available to customers in need, there are 12 colors to choose from. According to size, we provide Micro Heat Shrink Optic Fiber Sleeve.Also can provide OEM service.


Product Detail

Product Tags

Parameter

Type   Stainless Steel Rod Outer Tube Inner Tube AFTER HEATING
Material OD Length Material ID Thickness length material ID length thickness OD
60*1.2 304 1.15±0.02 54.5 EVA 3.2±0.1 0.25±0.02 60 EVA 1.7±0.05 60 0.35±0.05 2.7±0.1
54*1.2 304 1.15±0.02 49 EVA 3.2±0.1 0.25±0.02 54 EVA 1.7±0.05 54 0.35±0.05 2.7±0.1
45*1.2 304 1.15±0.02 40 EVA 3.2±0.1 0.25±0.02 45 EVA 1.7±0.05 45 0.35±0.05 2.7±0.1
40*1.2 304 1.15±0.02 36 EVA 3.2±0.1 0.25±0.02 40 EVA 1.7±0.05 40 0.35±0.05 2.7±0.1
60*1.0 304 1.0±0.02 55 EVA 3.1±0.1 0.23±0.02 60 EVA 1.8±0.05 60 0.28±0.05 2.5±0.15
54*1.0 304 1.0±0.02 50 EVA 3.1±0.1 0.23±0.02 54 EVA 1.8±0.05 54 0.28±0.05 2.5±0.15
45*1.0 304 1.0±0.02 40 EVA 3.1±0.1 0.23±0.02 45 EVA 1.8±0.05 45 0.28±0.05 2.4±0.15
40*1.0 304 1.0±0.02 35 EVA 3.1±0.1 0.23±0.02 40 EVA 1.8±0.05 40 0.28±0.05 2.4±0.1
35*1.0 304 1.0±0.02 30 EVA 3.1±0.1 0.23±0.02 35 EVA 1.8±0.05 40 0.28±0.05 2.4±0.1
60*0.8 304 0.8±0.02   EVA     60 EVA       2.3±0.1
45*0.8 304 0.8±0.02   EVA     45 EVA       2.3±0.1
40*0.8 304 0.8±0.02 36 EVA     40 EVA       2.3±0.1
35*0.5 304 0.5±0.02   EVA 1.1±0.1   35 EVA       1.4±0.1
30*0.5 304 0.5±0.02   EVA 1.1±0.1   30 EVA       1.4±0.1
25*0.5 304 0.5±0.02   EVA 1.1±0.1   25 EVA       1.4±0.1

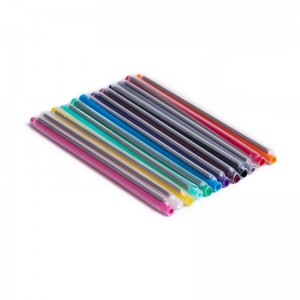

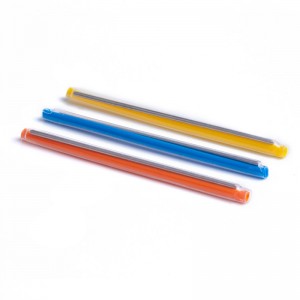

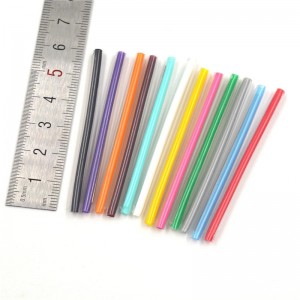

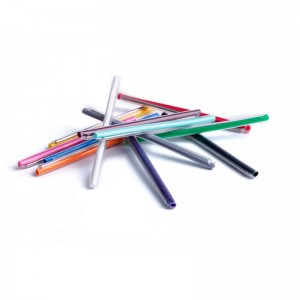

Product Display

colorful fusion splice09
colorful fusion splice10
colorful fusion splice08 (1)
colorful fusion splice08 (2)
