Factory sales Fiber Optic PLC splitters

Short Description:

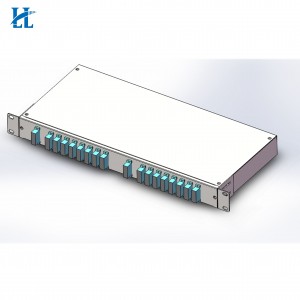

PLC splitter or planar lightwave circuit  splitter is a passive component that has the special waveguide made of planar silica, quartz or other materials. It is employed to split a strand of optical signal into two or more strands. Sure, we also provide ABS box type PLC splitter. The fiber optic splitter is one of the most important passive devices in the optical fiber link. Waveguides are fabricated using lithography onto a silica glass substrate, which allows for routing specific percentages of light. As a result, PLC splitters offer accurate and even splits with minimal loss in an efficient package. It is an optical fiber tandem device with many input and output terminals, especially applicable to a passive optical network (EPON, GPON, BPON, FTTX, FTTH etc.) to connect the MDF and the terminal equipment and to branch the optical signal.


Product Detail

Product Tags

Features

Excellent Mechanical, Small Size

High Reliability

Low insertion Loss and low Polarization Dependent loss

High channel counts

Excellent Environmental Stability and Widely Used

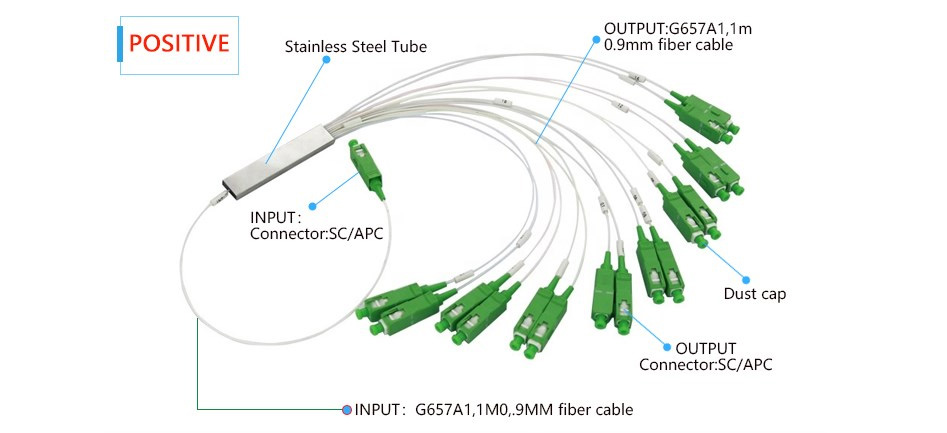

PLC Splitters4

Applications

Fiber to the home(FTTH)

Passive optical networks(PON)

Local area networks(LAN)

Cable Television( CATV)

Testing equipment

FTTX deployments(GPON/BPON/EPON)

Parameters

Parameter Specification
Operating Wavelenght(nm) 12601650
Type 1×4 1×8 1×16 2×4 2×8 2×16 1×32 2×32 1×64
Insertion Loss(dB) Max <7.3 <10.4 <13.5 <7.6 <11.2 <14.5 <16.5 <18.2 <20.5
Uniformity(dB) Max <0.8 <1.0 <1.5 <1.0 <1.5 <2.0 <2.0 <2.5 <2.5
PDL(dB) Max <0.2 <0.2 <0.3 <0.3 <0.3 <0.4 <0.3 <0.4 <0.3
Directivity(dB) Min 55
Return Loss(dB) Min 55(50)
Operating temperature() -5+75
Storage Temperature() -40+85
Fiber Length 1m or custom length
Fiber Type G657A or decided by customer
Connector Type SC,FC,ST decided by customer
Power Handing(mW) 300
Note: All the data above dose not include connectors.
UPC Connectors: IL add 0.2 Db, APC Connectors: IL add 0.3 dB
