Rack-Mount Fix Fiber Patch Panel

Short Description:

Optical Fiber Patch Panel is an auxiliary equipment for terminal wiring in optical fiber transmission communication network, suitable for direct and branch connection of indoor optical cables, and protects optical fiber joints. The fiber optic cable terminal box is mainly used for the fixing of the fiber optic cable terminal, the splicing of the fiber optic cable and the pigtail, and the storage and protection of the remaining fiber.

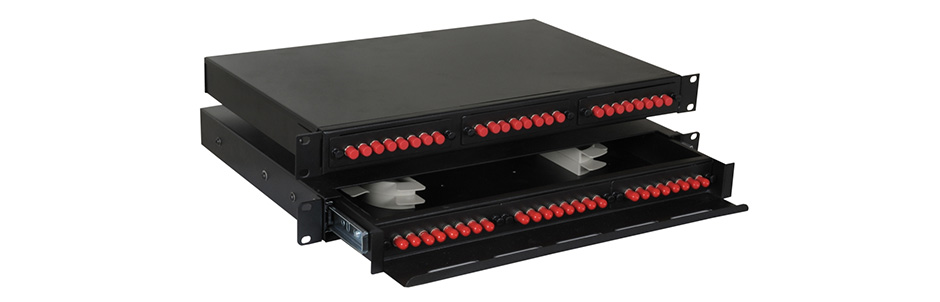

Rack-Mount Fixed Fiber Patch Panels are 19’’ inch size and Modular design fit for Rack Mount. The Fiber Patch Panel comes with a number of cable management devices for organizing cables entering and exiting the panel. This Fiber Distribution Frame are equipped with slack-fiber storage spools,cable fix seat and Splicing tray. Each Fiber Optic Distribution Frame features front and rear removable metal covers for quick and easy installation and maintenance. And the cover is fixed by screw.its simple structure and the better costly choice.


Product Detail

Product Tags

Features

The Fiber Optic Terminal Box is made of high-quality cold-rolled steel plate, thickness of metal is 1.2mm.

The box surface using epoxy electrostatic spray, corrosion resistant, anti-aging.

Plastic parts using flame retardant ABS material components.

Three adaptor plate or 2 is ok. its easy to install and operate.

The measure of Fiber Optic ODF could be 1U\2U\3U\4U or more. any size and color could be choose, we can provide OEM service.

You can choice the pigtail and fiber adapter that you needed,such as LC,SC,FC.....

Details

1. Cable management used for fix cable and manager fiber.

 fiber splice tray1

2. This is fiber splice tray, it used for holding sleeves that spliced fiber.The Optical Fiber Cable Splice can be used in stacks to meet the requirements of different cores.(you can clip the picture to know more)

fiber splice tray2

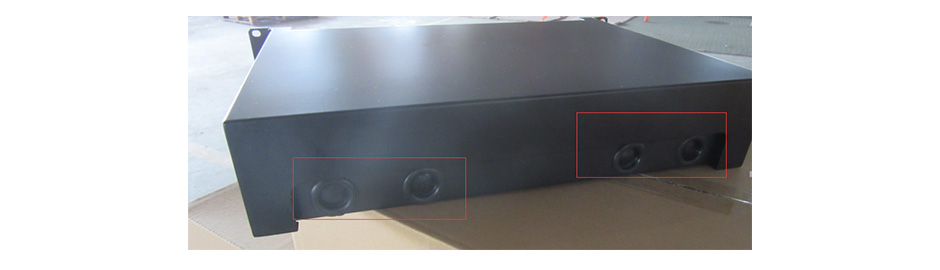

3. This is entry of cable. each one can holder 3-16mm cable to put in.

fiber splice tray3

Parameter

Model GPZ-JF-1RU GPZ-JF-2RU GPZ-JF-3RU
Size 482*250*1U 482*250*2U 482*250*3U
Color Black, Grey or customization
Metal Thickness 1.2mm
Power coating 70u
Adapter SC/LC/FC/ST
IP Rating IP20
Operate temperature -40℃~+50℃
Maximum capacity 48 ports (LC Duplex adapter)
