FDB-S108B 8F Fiber Distribution box

Short Description:

Specification:

a.High impact plastic, standard user interface b.Suitable for 1×4,1×8 PLC splitter

c .Anti-UV,shocking resistance d.Wall mount

e.Unique middle panel≥180°,clear area for splicing and distribution, less cross-connection for cables

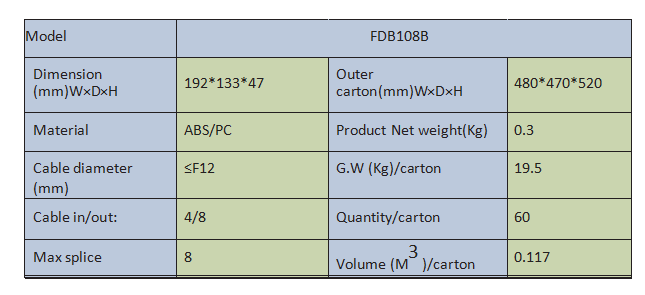

Technical data

^lFiber bend radius:≥40mm

^lSplice tray excess loss：≤0.01dB

^l Temperature Range : – 40℃ + 60℃

^l Anti lateral pressure : ≥2000N / 10 cm

^lShock resistance：≥20N.m

SAMPLE FREE,JUST CONTACT US ~

Send email to us Whatsapp

Product Detail

Product Tags

Application:

This product integrates the function of splicing with splitting,suitable for the straight through or branch connection,and terminal connection in optical system, as well as protection connection for cables and distribution pigtails. The cables can be spliced with indoor cables by splitting,to meet the requirement of traditional network.
