Wall Mount Termination Patch Panels

Short Description:

HTLL provides fiber optic terminal box with different quantity adapters ports according to customers request. This series of fiber optic wall mounted customer terminal box used in the end termination of residential buildings and villas, to fix and splice with pigtails; wall mounted.

Wall Mount Fiber Patch Panel integrated the function of fiber fusion splicing, storage and distribution, mainly used for the termination and distribution of central trunk cables, to realize the connection, distribution and organization in optical fiber communication system. Suitable for small and medium wiring system such as FTTZ,FTTB. According to customer’s requirement, we can provide OEM services, load 12 core fibers,24 core fibers,48 core fibers,96 core fibers ,288 core fibers,576 core fibers and so on. Is easy to operate for fiber optical applications. It is suitable for SC, LC, FC and ST adapter. The panel color can be black and white.

Product Detail

Product Tags


Wall mount distribution box is made 1.2mm high quality cold-rolling steel and surface electrostatic sprayed. Uniform and smooth appearance, corrosion resistance, compression and impact resistance.
The splice tray could be piled one upon another, flexible to turn.
Fit for various types and structure of cable with diameter is within 16mm.
Can realize the connection cable with pigtails and can also protect the fiber connectors.
For the adapter, SC, LC, ST, FC could be optional.
The design of splice tray and independent insulated grounding is to make expansion and allocation of cable is more convenient, flexible and safe.
Applicable in the straight through or branch connection of indoor optical cable
Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly.
Available for the distribution and terminal connection of various kinds of optical fiber system.
Fit for wall mounted.
The indoor type is of excellent seal performance, which could prevent water from entering effectively.
Outdoor wall terminal fiber boxes are available, waterproof class: IP65


Telecommunication networks

CATV Networks; LAN Network

Active device termination


Product Display

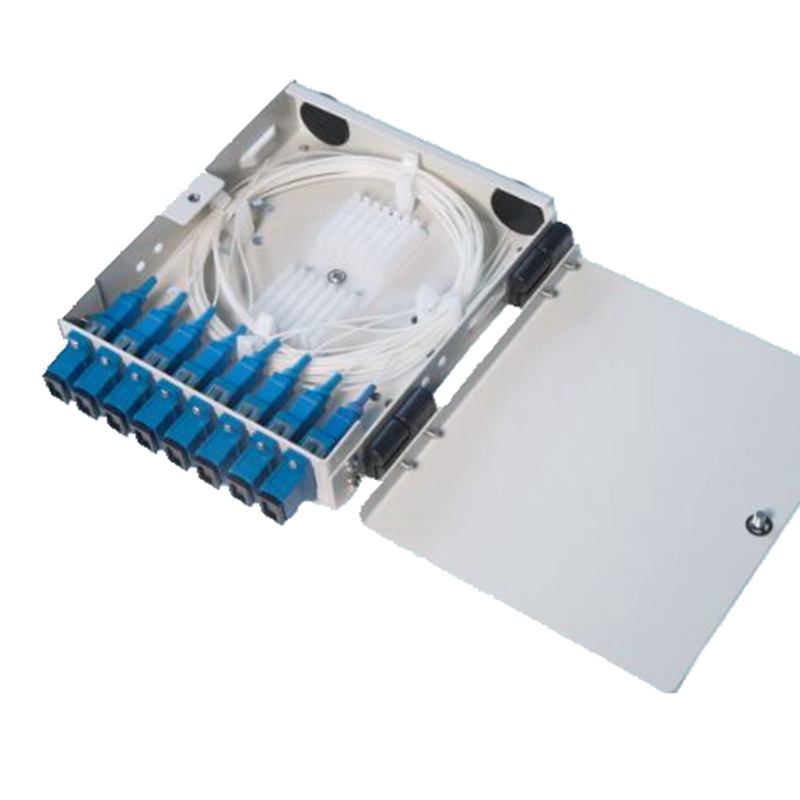

Wall Mount Termination Patch Panels01

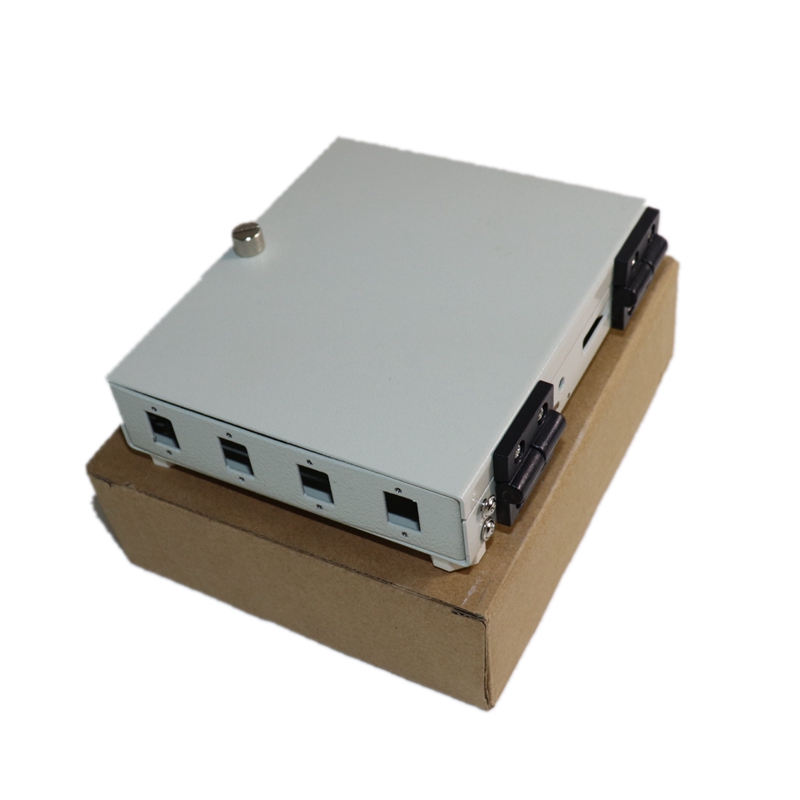

Wall Mount Termination Patch Panels02

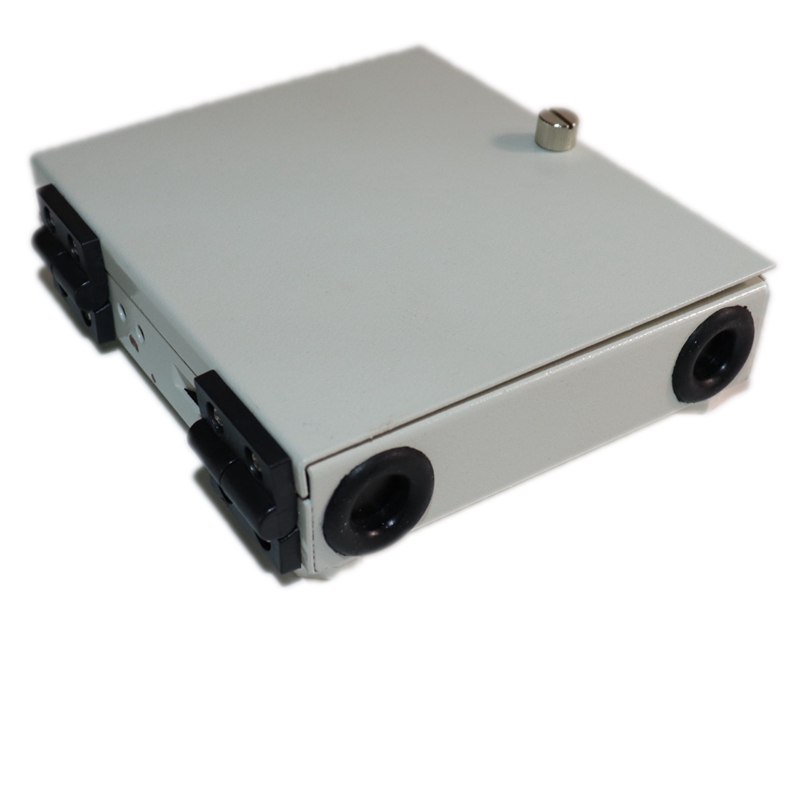

Wall Mount Termination Patch Panels03
Wall Mount Termination Patch Panels04
