Factory sales 601.02.5mm Fiber Optic Cable Protection Sleeve

Short Description:

Fiber splice sleeve is compose of reinforced steel wire, hot melt tube and cross-linked polyolefin. providing SS304 or SS201 strength member and protection to fiber optical splices

It can reconstruct overlay fiber and can provide good mechanical strength at the junction,to ensure good optical transmission properties.

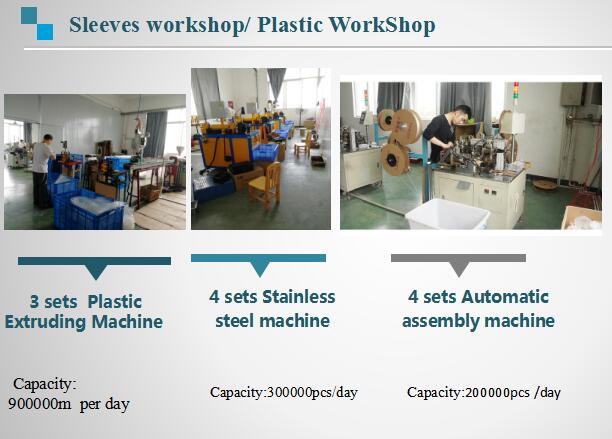

we are factory of Fustion Splice Sleeve and we can provide OEM Service.such as Ribbon sleeve,Fiber sleeve for drop cable,Micro splice sleeve…..

If have any insteres,please feel free to contact us.

Send email to us Whatsapp

Product Detail

Product Tags

Application

The Fiber Optical Heat Shrink Sleeves is A protective element designed for the connection of optical fibers.

The optical conductivity of optical fiber is not affected
Protect the connection point, improve the mechanical strength
Simple operation, reduce the risk of damage to the fiber installation;
transparent Tube, the optical fiber connection status at a glance
Quick shrinkage speed and high construction efficiency;
high temperature, the use of a wide range;

The seal structure has good temperature and humidity resistance.

Model		HT-RSK 60*1.0
Type		Single fiber
Outer shrink tube Length	Material	PE（less）+EVA(more)
	Length	60±0.2mm
	Inner Diameter	3.2±0.1mm
	Thickness	0.22±0.02mm
Inner Tube	Material	EVA
	Length	60±0.2mm
	Inner Diameter	2.1±0.2mm
	Thickness	0.25±0.02mm
Steel rod (non-magnetic)	Material	304 stainless steel
	Length	55±0.02mm
	Inner Diameter	1.0±0.02mm
OD after shrink		2.5±0.05mm
Operating temperature		-45 °C to + 140 °C
Standard Color		Clear
Color Available		White, Blue, Grey, Yellow, Brown, Black, Orange, Pink,Red, Cyan, Green, Purple
Package		100pcs/bag or 12pcs/bag
Heat Shrink Condition		140℃ 2~4 Seconds
